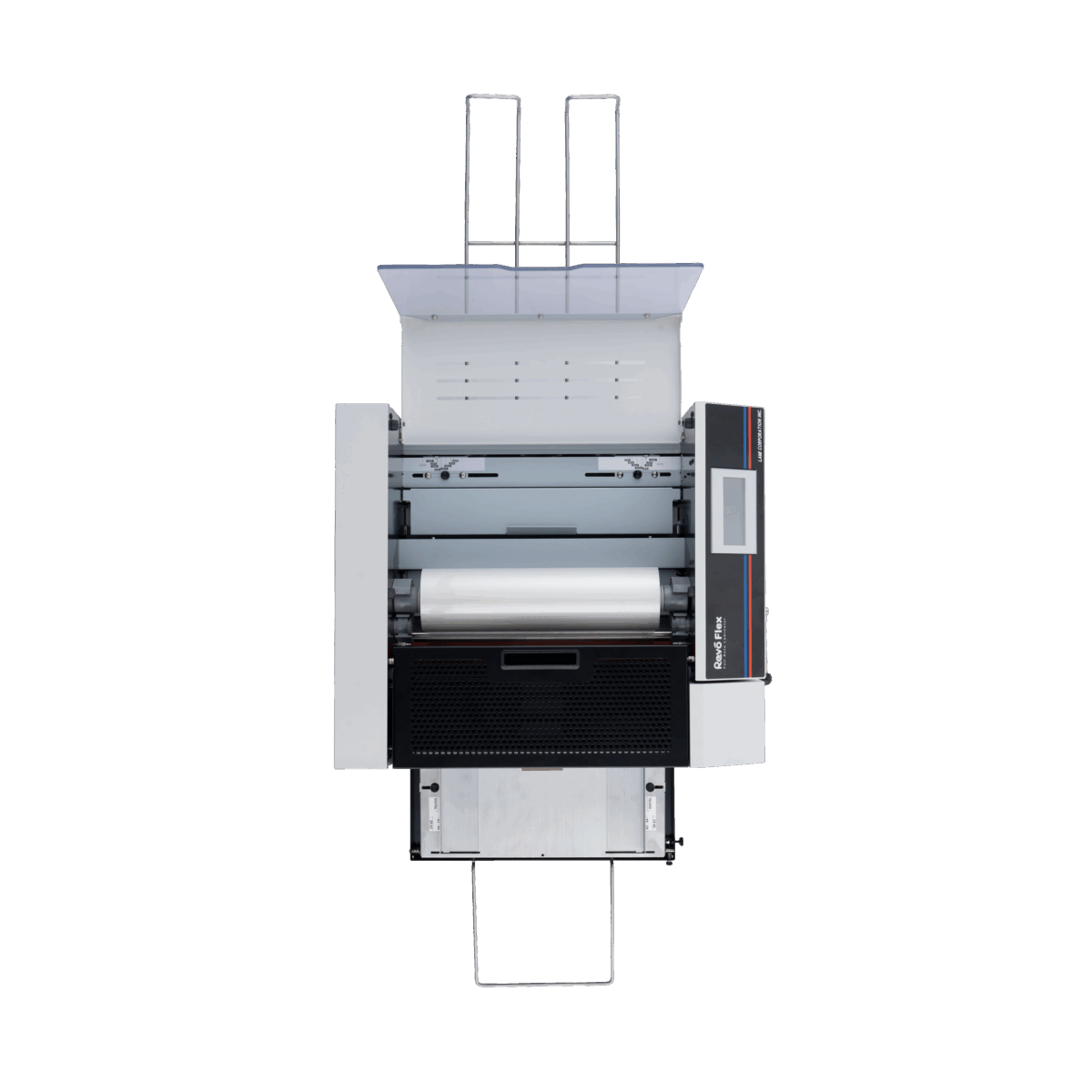

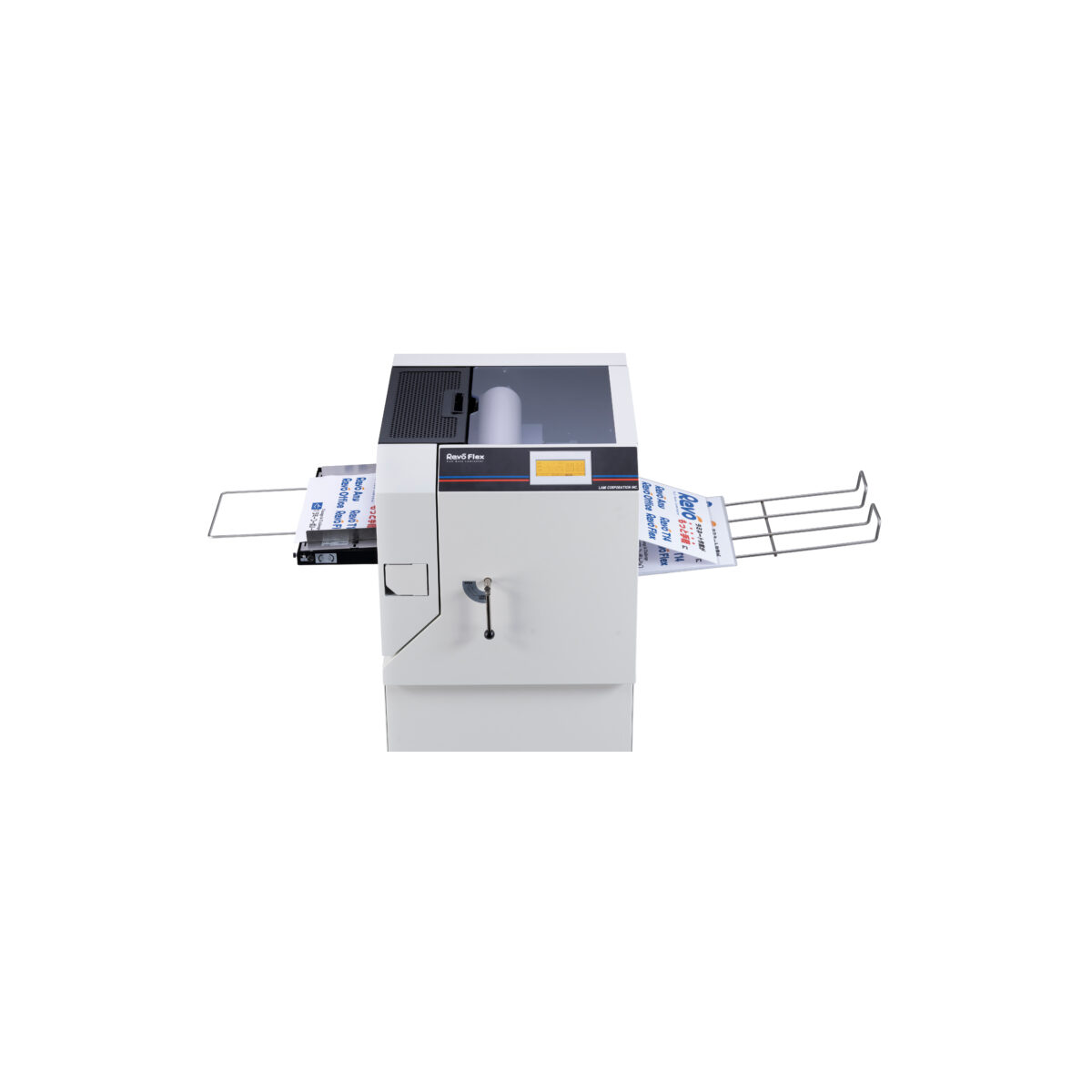

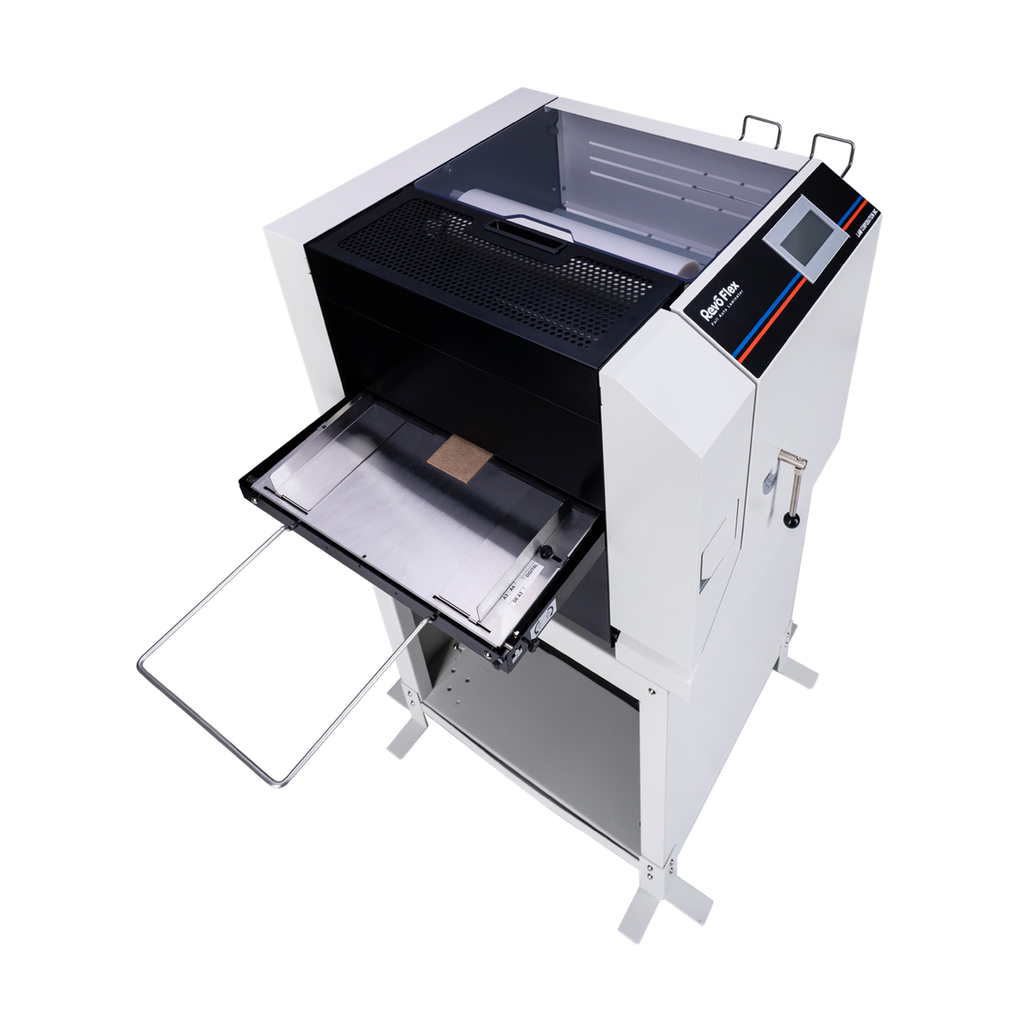

The Revo Flex 4-Side Trim Automatic Laminator laminates, cuts, and trims all four sides of a sheet in a single pass, with no second trimming machine and no operator standing by.
Built for reprographics shops, print production teams, and offices that finish menus, ID cards, signage, and letter/legal-size documents, the Revo Flex feeds sheets up to 13" wide, laminates with 12.6"-wide film, and delivers a finished, edge-to-edge piece straight off the machine, up to 420 sheets per hour.
Why choose the Revo Flex:
- Single-pass 4-side trim — Feed, laminate, cut, and trim internally on all four sides in one automated pass, eliminating a separate trimming step.
- Adjustable trim & no-waste mode — Dial in a true flush cut or a deliberate encapsulation border, with or without margin, or run no-waste mode to skip sheet trim entirely.
- Wide speed range — Adjustable from 27.5–78 inches per minute, up to 420 sheets/hour, to match run size and media.
- Broad media compatibility — Adjustable speed and resist roller pressure hold quality across paper weights and film thicknesses from 1.5–10 mil.
- Touch panel control — Speed, trim position, and pressure adjustments managed from one interface.
Revo Flex Specifications
| Specification | Value | Professional Benefit |
|---|---|---|
| Max sheet width | 13" | Fits letter/legal documents and most menu, card, and small-format jobs |
| Max film width | 12.6" | Matches Lami Corporation film rolls for edge-to-edge lamination |
| Speed | Up to 420 sheets/hour (27.5–78 ipm, adjustable) | Scales from short runs to high-volume batches on one machine |

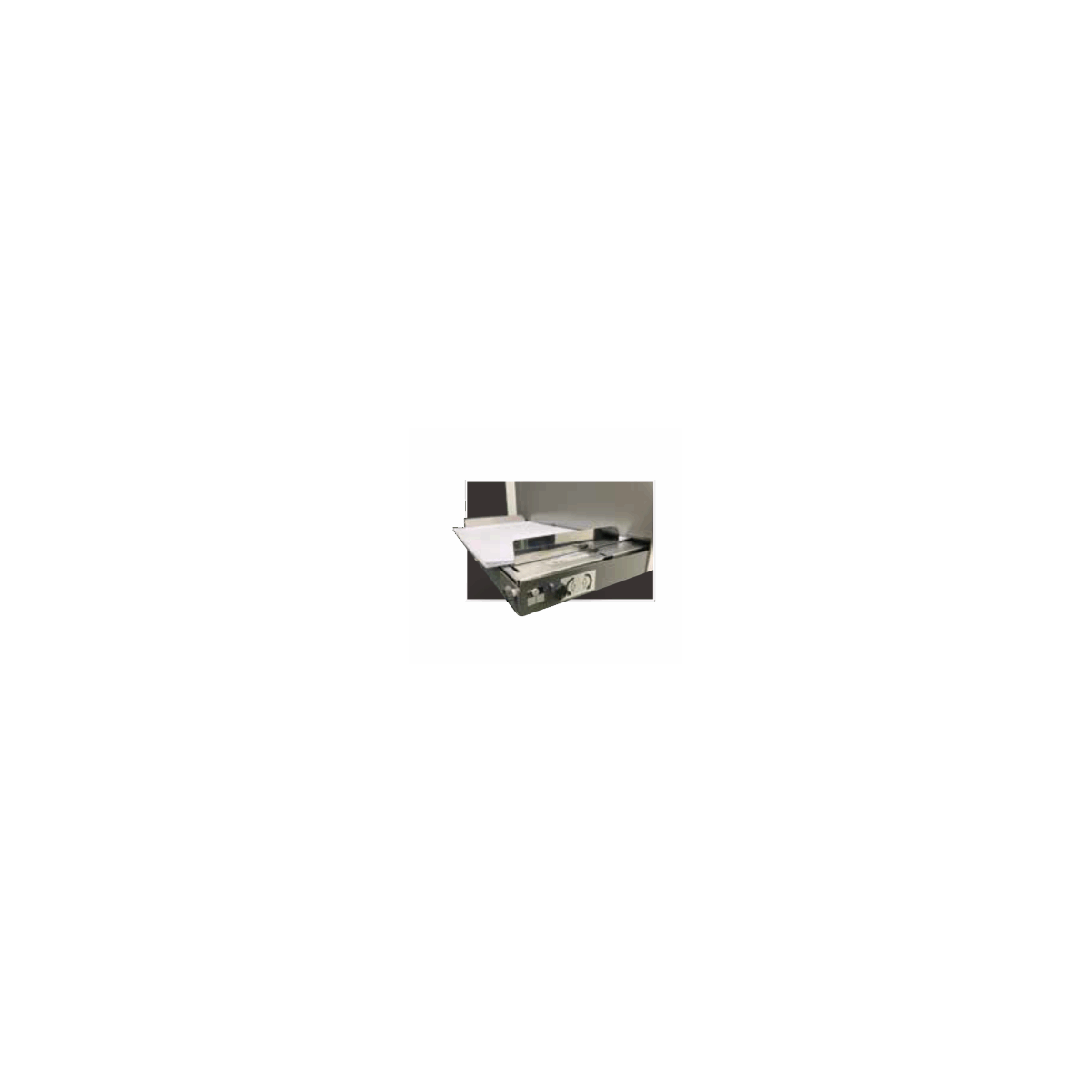

| Feeder capacity | 200 sheets | Supports longer unattended runs, freeing up operator time |
| Film thickness | 1.5–10 mil | Covers light document protection up to heavier card/sign lamination |
| Trimming | Internal 4-side, with or without margin | Delivers a finished, ready-to-use piece straight off the machine |
| Power | 110v | Runs on standard office/shop electrical, no special wiring |
| Shipping weight & dimensions | 154 lbs; 51" x 24" x 42.5" (ships LTL) | Helps plan freight receiving and floor space in advance |

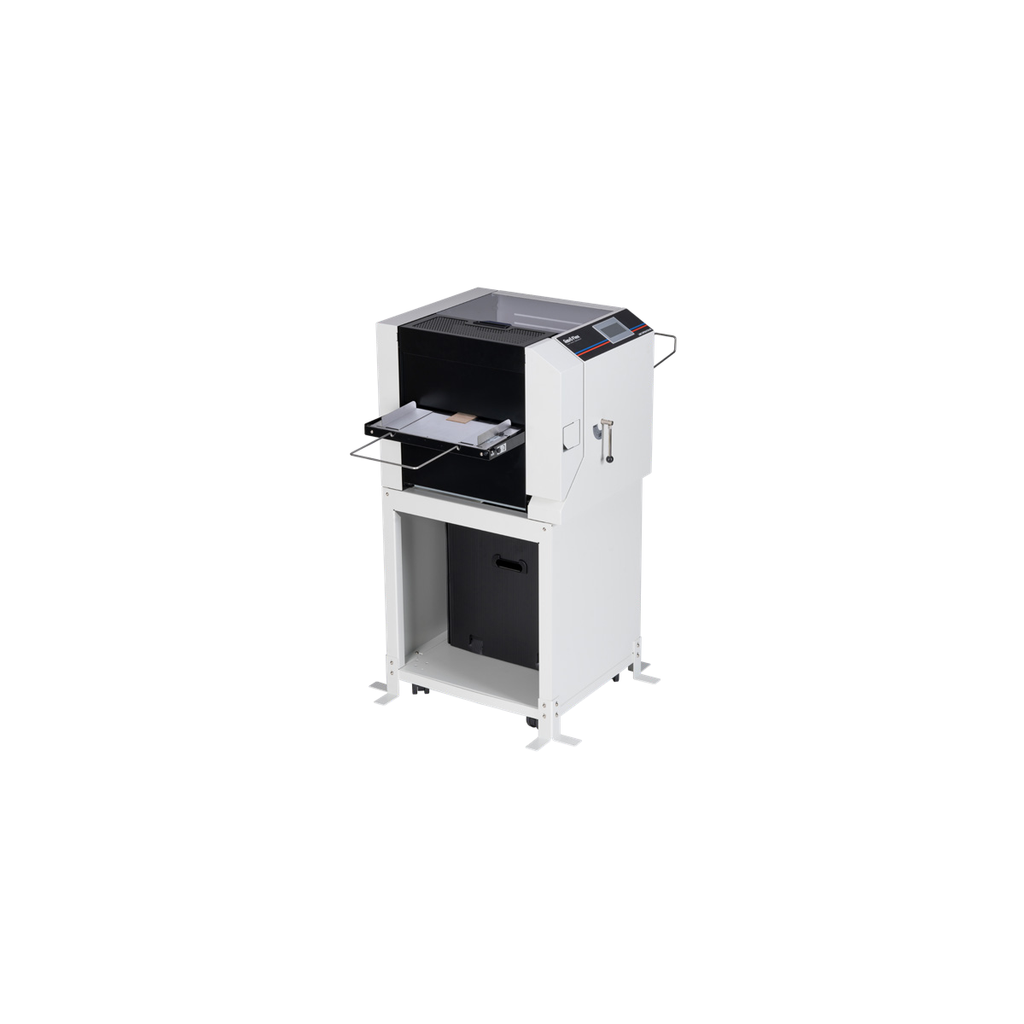

| Stand | Included | No separate purchase needed to set the unit at working height |
| Film compatibility | Lami Corporation film only, 12.6" width (sold separately) | Confirms the exact consumable to budget and reorder |
*Specifications reflect manufacturer data published on the product listing; film is required for operation and is not included with the machine.
Quick Selection Guide
- Best for reprographics and print shops: Revo Flex (up to 420 sheets/hour, 200-sheet feeder, single-pass 4-side trim)
- Best for offices finishing menus, ID cards, and flyers in-house: Revo Flex (13" sheet width, adjustable flush or border trim)
- Best for mixed media and thickness runs: Revo Flex (1.5–10 mil film range, adjustable speed and resist roller pressure)
- Best for shops wanting zero trim waste: Revo Flex (no-waste run mode skips sheet trim entirely)
Revo Flex Laminator Frequently Asked Questions
Quick Answer: The Revo Flex laminates sheets up to 13" wide with film up to 12.6" wide — sized for letter/legal documents, menus, ID cards, and small-format prints.
What's the maximum sheet size the Revo Flex can laminate?
The Revo Flex accepts sheets up to 13" wide and laminates with film up to 12.6" wide. That makes it a fit for letter/legal-size documents, menus, ID cards, luggage tags, and small-format signage rather than large architectural drawings.
Quick Answer: The Revo Flex runs up to 420 sheets per hour, with speed adjustable from 27.5 to 78 inches per minute.
How fast is the Revo Flex laminator?
Throughput reaches up to 420 sheets per hour, with adjustable speed from 27.5 to 78 inches per minute. Operators can slow down for heavier stock or thicker film and speed up for high-volume runs, without changing equipment.
Quick Answer: Yes — the Revo Flex trims all four sides internally in the same pass as feeding and laminating, with adjustable trim position.
Does the Revo Flex trim all four sides automatically?
Yes. Feeding, laminating, cutting, and 4-side trimming all happen in one automated pass from a single start button. Trim positions are adjustable, so you can produce a true flush cut or leave a deliberate encapsulation border, with or without margin.
Quick Answer: The Revo Flex is designed for Lami Corporation film only, in 12.6" width; film is sold separately.
What laminating film does the Revo Flex use?
The Revo Flex uses Lami Corporation film exclusively, in 12.6" width. Film is not included with the machine and must be ordered separately based on your project's finish and thickness needs.
Quick Answer: The Revo Flex handles film thicknesses from 1.5 to 10 mil, with adjustable speed and resist roller pressure for different paper weights.
What paper weights and film thicknesses does the Revo Flex support?
Film thickness ranges from 1.5 to 10 mil. Adjustable speed and resist roller pressure let the machine hold consistent quality across a range of paper weights, from light documents to heavier stock.
Quick Answer: Yes, a stand is included with the Revo Flex; laminating film is not included and is ordered separately.
Is a stand included with the Revo Flex?
Yes. The Revo Flex ships with its stand included. Laminating film is not included — the machine uses Lami Corporation film in 12.6" width, which is sold separately.
Quick Answer: The Revo Flex runs on standard 110v power, so most offices and print shops can plug it in without special wiring.
What are the power requirements for the Revo Flex?
The Revo Flex operates on standard 110v power. This typically means no special electrical work is needed to add it to an existing office or production floor setup.
Quick Answer: The Revo Flex ships LTL freight at approximately 154 lbs, with dimensions of 51" x 24" x 42.5".
How is the Revo Flex shipped, and how much does it weigh?
The Revo Flex weighs approximately 154 lbs and ships via LTL freight in a crate measuring 51" x 24" x 42.5". Plan for freight receiving (loading dock or liftgate) and adequate floor space when scheduling delivery.
Texas Automatic Laminator Experts: TAVCO stocks the Revo Flex 4-Side Trim Automatic Laminator and compatible Lami Corporation film for direct service across Austin, Dallas, Houston, San Antonio, Corpus Christi, Bryan-College Station, Waco, and Victoria. Call 866-254-8590 or email info@tavco.net for freight quotes.
