Description

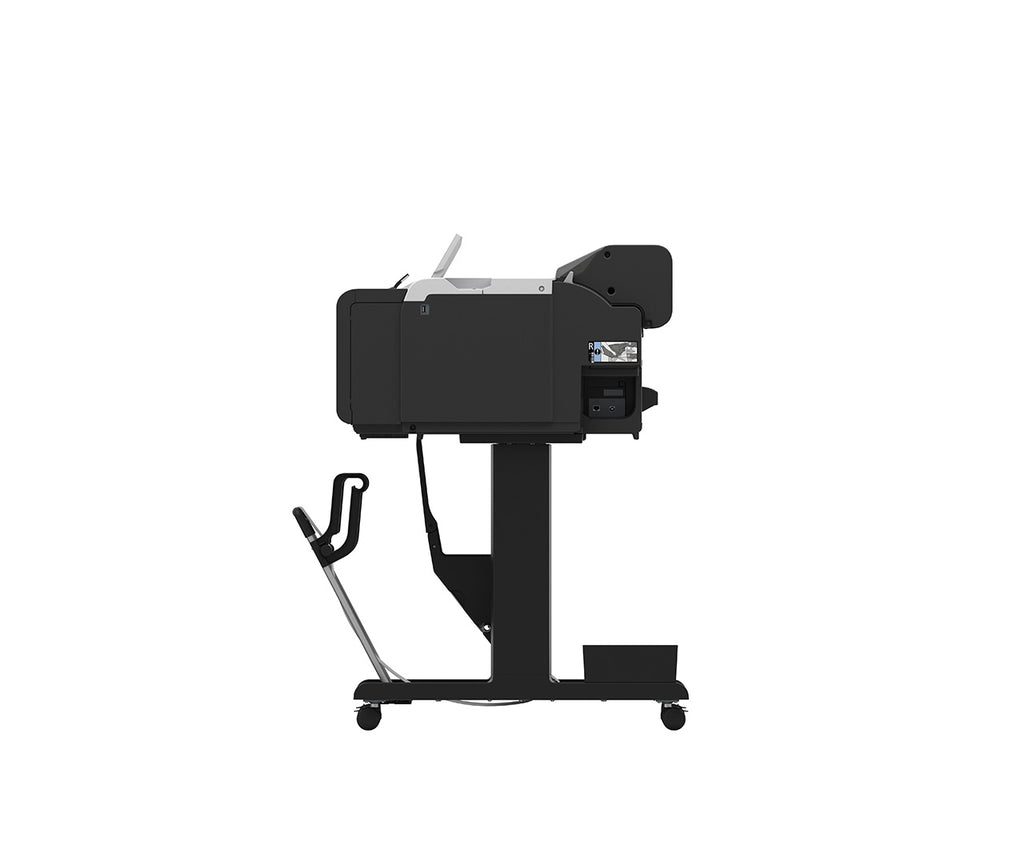

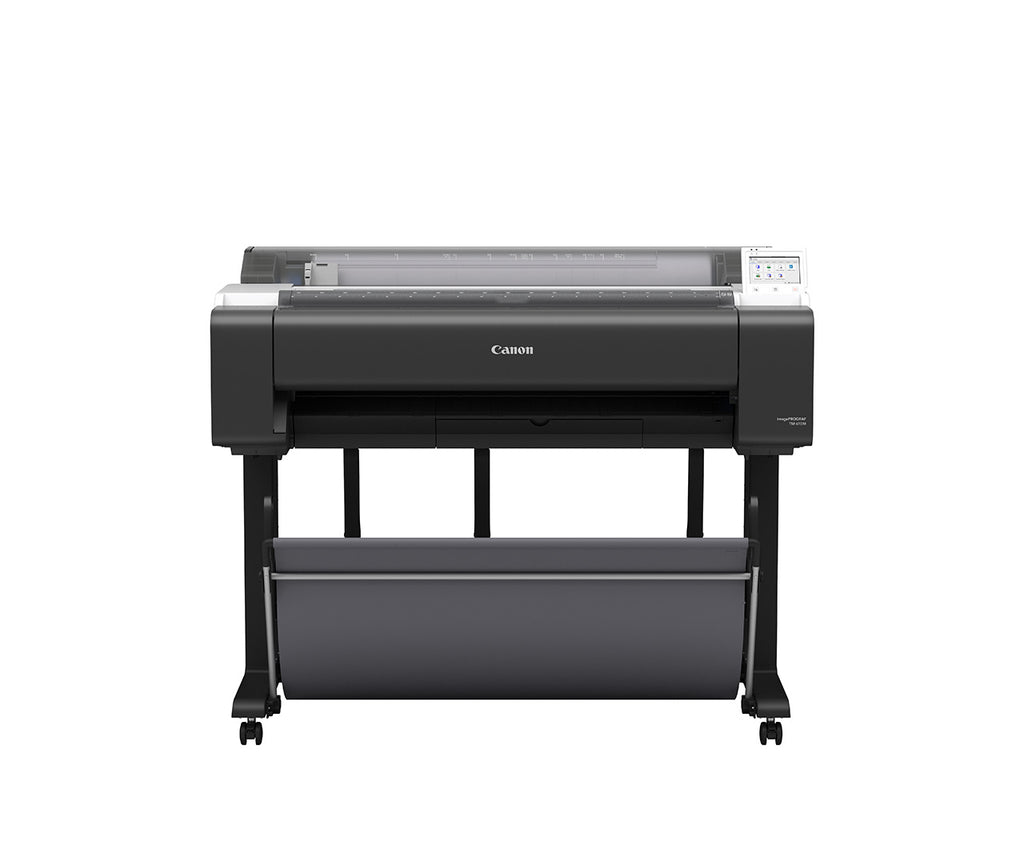

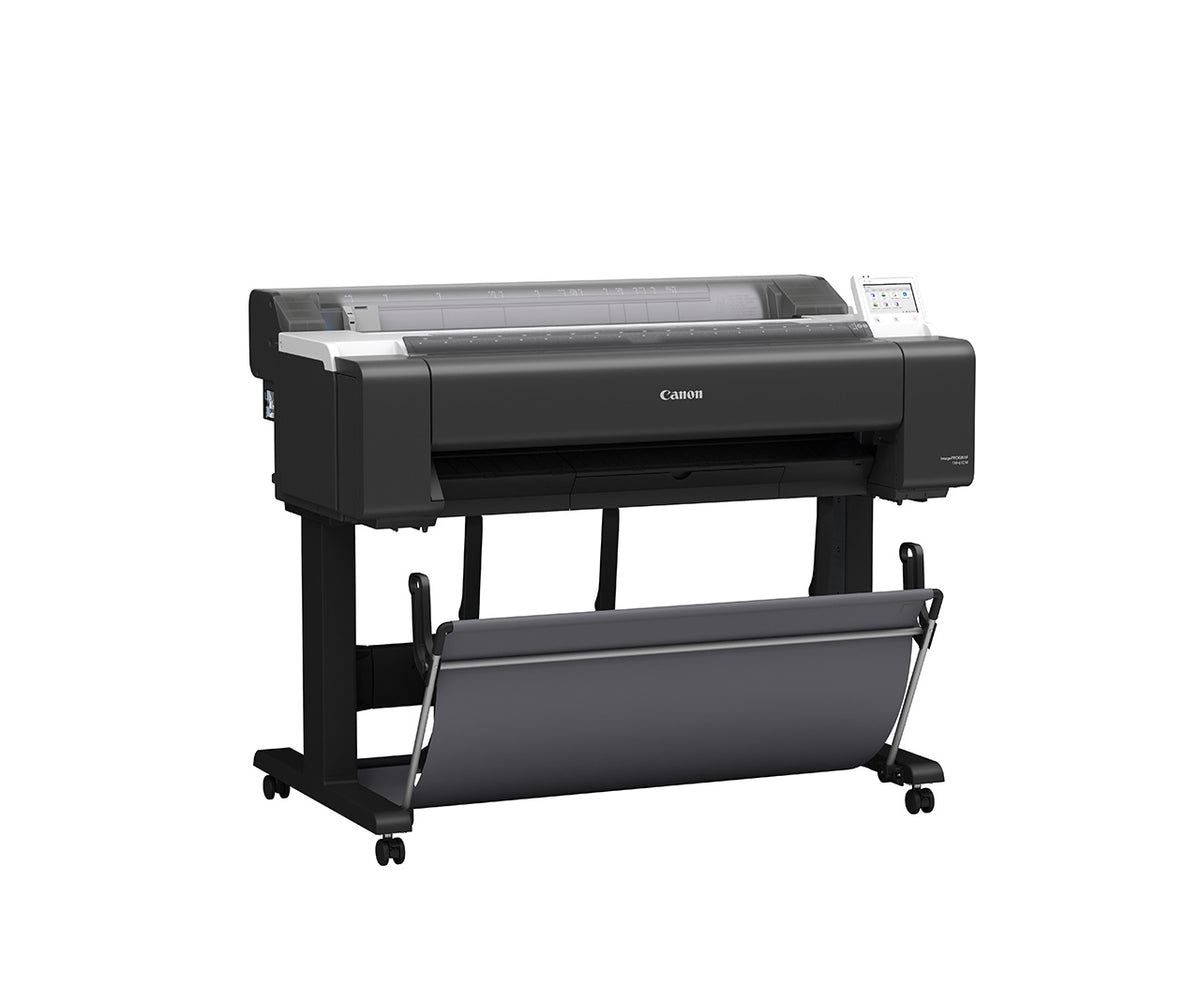

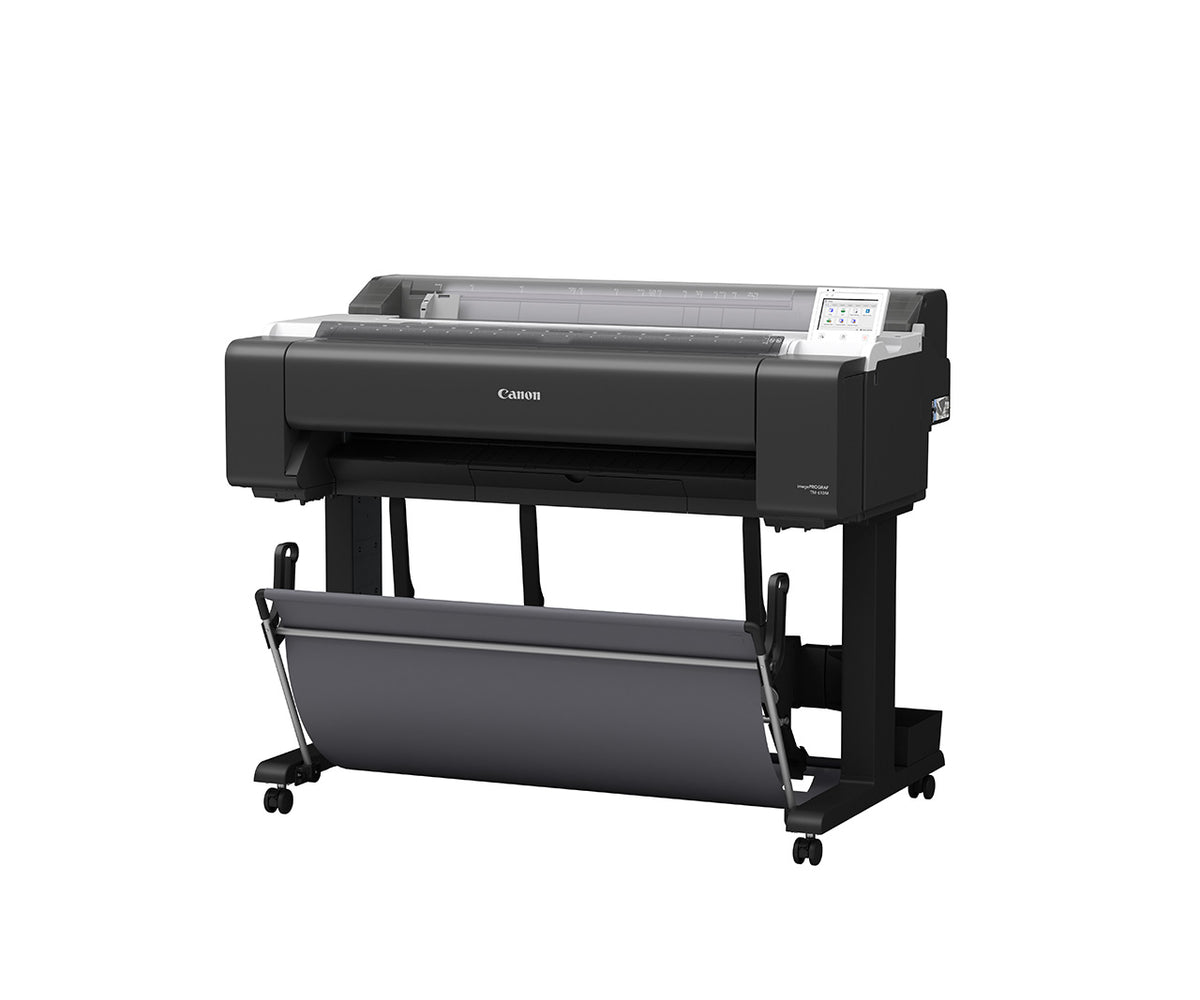

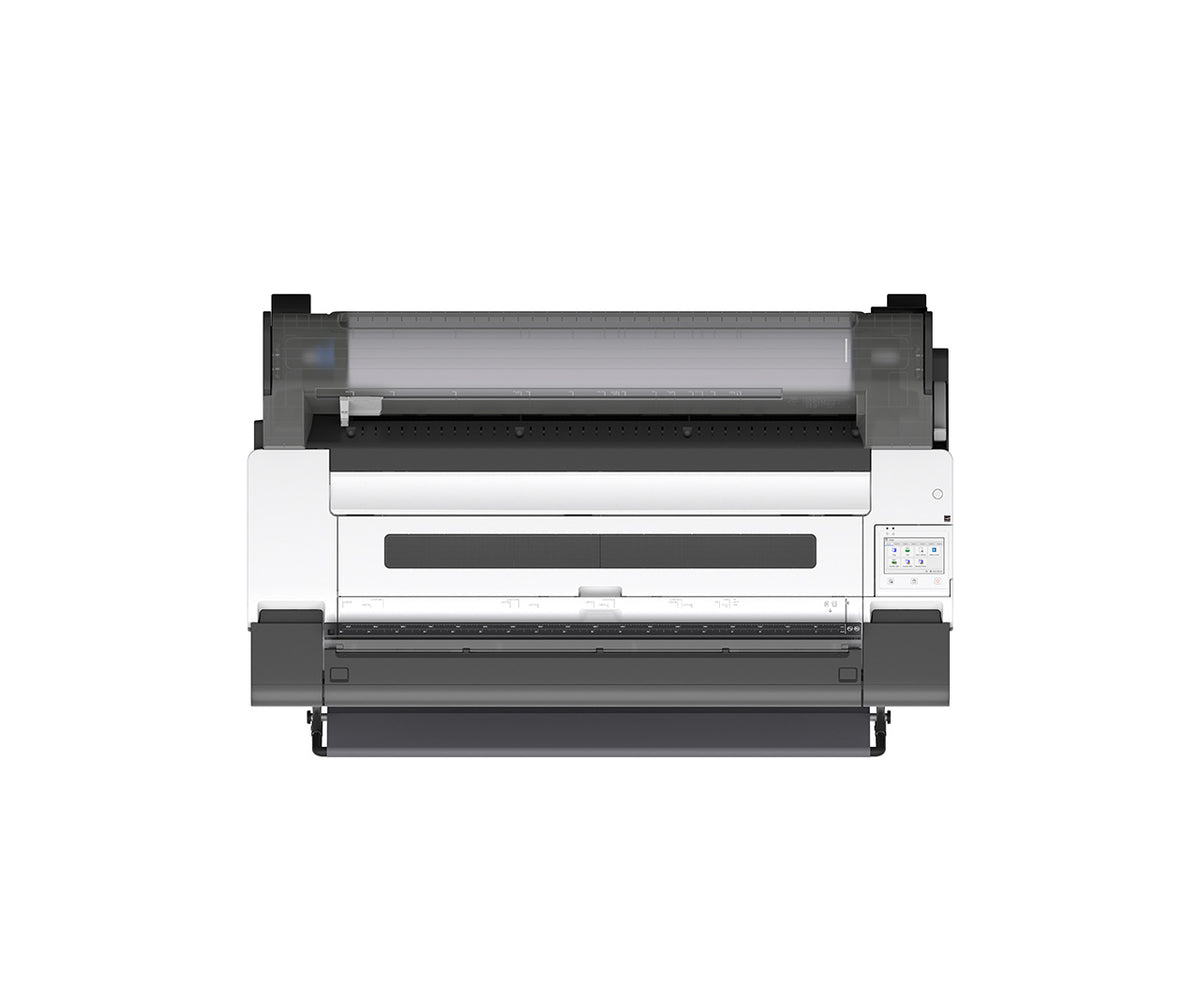

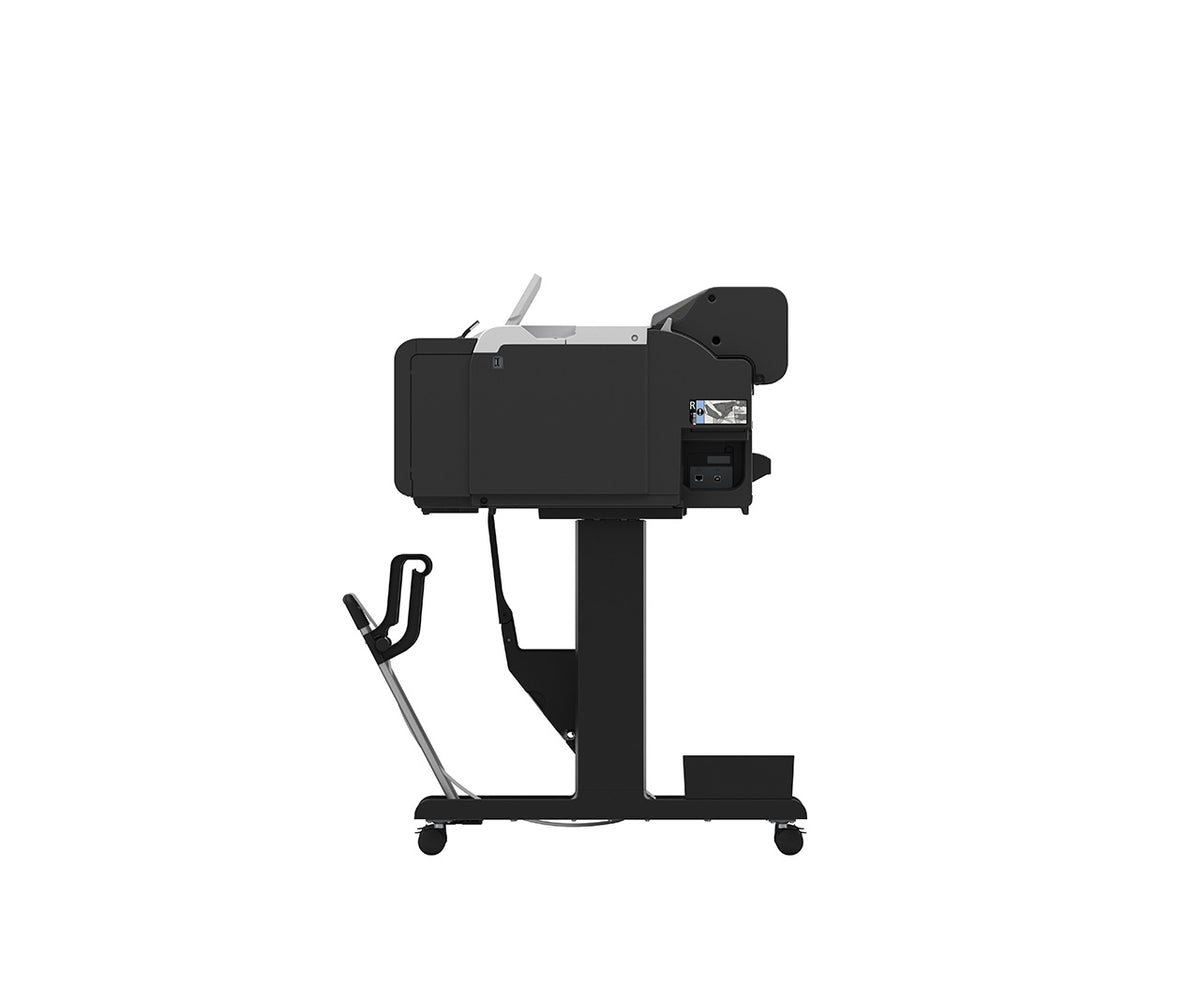

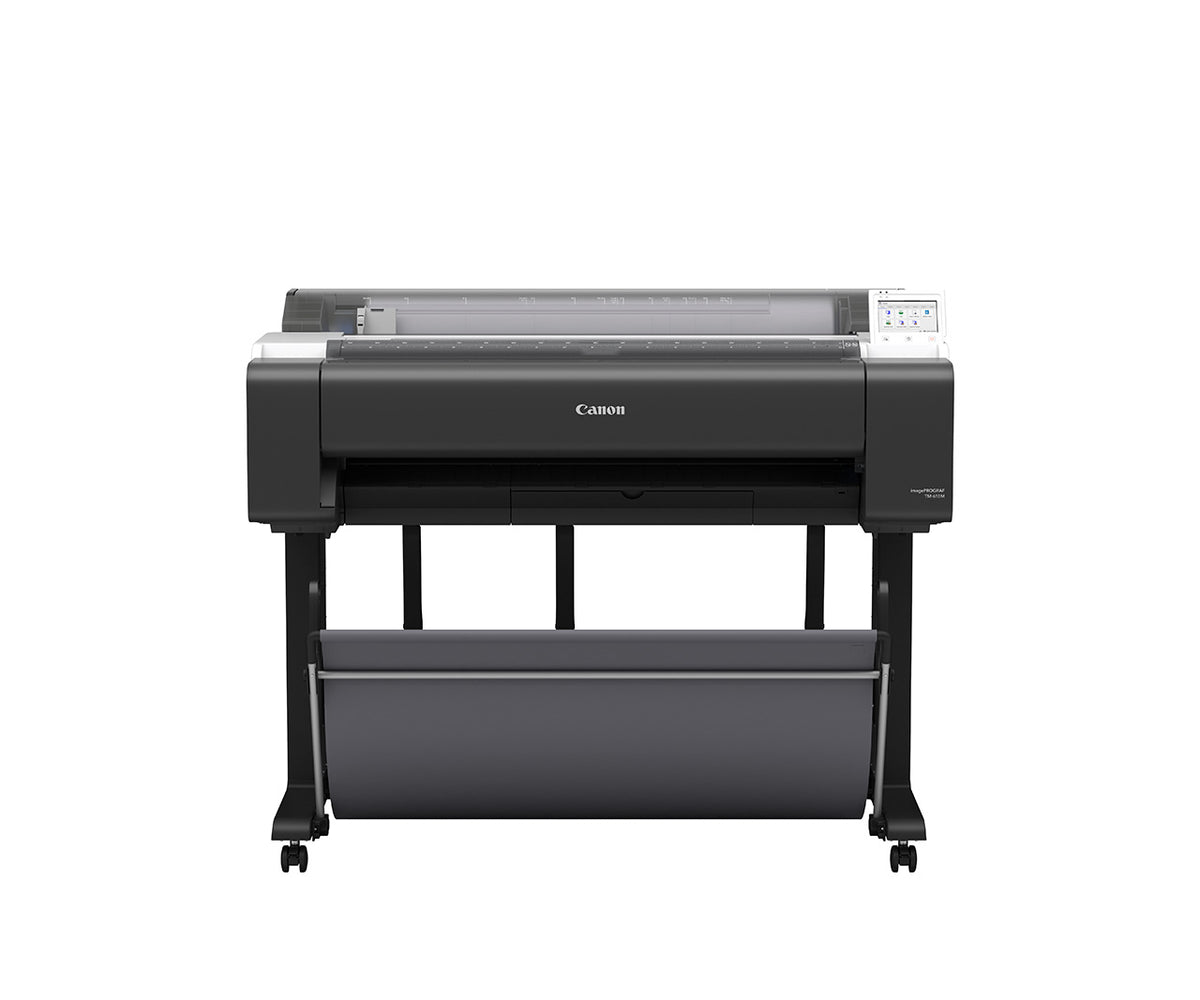

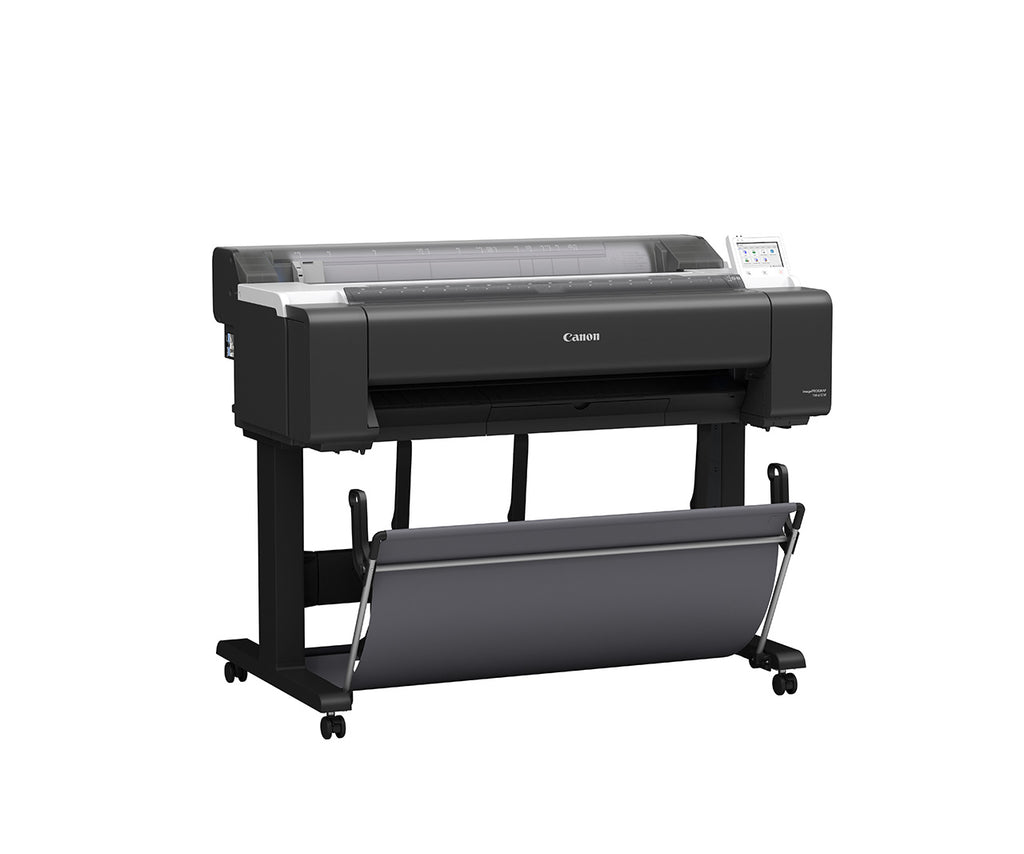

The Canon imagePROGRAF TM-610M is a 36-inch Canon wide-format printer with a built-in scanner, so architecture, engineering, and construction teams can print, scan, and copy drawings on one device. Canon rates it at up to 3.2 ARCH D prints per minute, with a 600 dpi maximum scan resolution and a 36-inch scan width.
Canon imagePROGRAF TM-610M Quick Facts
- Best for: Offices that print, scan, and copy large CAD drawings on one device
- Width: 36 inches maximum print width and 36 inches maximum scan width
- Ink: 5-color LUCIA TD pigment (MBK, BK, C, M, Y)
- Print speed: Up to 3.2 ARCH D (24 by 36 inches) prints per minute, per Canon
- Scanner: 600 dpi maximum resolution, Contact Image Sensor (CIS) technology
- Connectivity: USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi (IEEE 802.11 b/g/n)
A 36-inch CAD plotter and scanner for redlines, as-builts, and check sets
- Scan, copy, and print in one footprint. The integrated scanner sits in the flat-top body, so marked-up sets can be scanned to USB, email, or SMB without a separate scanner.
- Presets for drawings. Canon lists scan and copy presets for CAD line drawings, blueprint and inverted blueprint conversions, tracing paper, posters and photos, and drawings or maps.
- Creased originals. Canon says dual LED illumination reduces shadows on creased prints.
- Fast scanning. Canon lists 5.0 inches per second in color and 10.0 inches per second in monochrome at 200 dpi.
- One touchscreen for both jobs. The 5-inch tilt panel controls the printer and the scanner.
- Roll and sheet media. The printer takes roll or cut-sheet media from 8 to 36 inches wide, and a rotary cutter is standard.
- Crisper print lines on plain paper. Canon says the reformulated matte black ink gives sharper lines and text.
- Larger tanks. It ships with 130ml matte black and 90ml color tanks, and replacement tanks come in 130ml and 300ml sizes.
Who this is not for: The TM-610M prints and scans up to 36 inches wide and weighs about 165 pounds. If you only print and never scan, the TM-610 covers the same print width at a lower weight.
Not sure an MFP is the right fit for your drawing sizes and volume? Call TAVCO at 866-254-8590 before you buy and we'll help you sort out the fit.
Canon imagePROGRAF TM-610M Specifications
| Attribute | Value |
|---|---|
| Printing | |
| Printer type | 36-inch large-format printer with integrated scanner |
| Maximum output width | 36 inches |
| Ink type | Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK), LUCIA TD |
| Maximum print speed | 3.2 ARCH D (24 by 36 inches) prints per minute* |
| Maximum print resolution | 2,400 x 1,200 dpi |
| Printhead | PF-06 |
| Number of nozzles | Matte black: 5,120; other colors: 2,560 per color |
| Droplet size | 5 picoliter |
| Print languages | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
| Media handling | |
| Media feed | Roll feed: one roll, top-loading, front output |
| Media width | Roll feed: 8 to 36 inches; cut sheet: 8 to 36 inches |
| Maximum print length | Roll media: 59 feet; cut sheet: 5.2 feet (varies by OS and application) |
| Media cutter | Automatic horizontal cutting (rotary cutter), standard |
| Media thickness | 0 to 0.03 inch (0.07 mm to 0.8 mm) |
| Media core sizes | 2-inch core standard; 2-inch/3-inch roll holder set (RH2-35) included |
| Maximum roll outer diameter | 5.9 inches (150 mm) |
| Media output | Stackable basket |
| Scanner | |
| Maximum resolution | 600 dpi |
| Maximum scan width / media width | 36 inches / 36.5 inches |
| Maximum scan length | 326.9 inches (JPEG) / 200 inches (PDF) |
| Scan media thickness | 0.003 to 0.03 inch (0.07 mm to 0.8 mm) |
| Scan speed | Color: 5.0 ips at 200 dpi; monochrome: 10.0 ips at 200 dpi** |
| Copy speed (color) | 66 seconds at 200 dpi** |
| Maximum number of copies | Up to 99 |
| Digital imaging technology | Contact Image Sensor (CIS), dual side illumination, 8-bit RGB, 8-bit grayscale |
| Zoom ratio | 25 to 432% |
| Preset modes | CAD (line drawing), blueprint (black and white conversion), inverted blueprint (black and white conversion), tracing paper, poster/photo, drawing/map |
| Scan to | USB memory (FAT16, FAT32, exFAT), Email, SMB |
| Ink tanks | |
| Shipped with printer | 130ml MBK; 90ml each of BK, C, M, Y |
| Replacement: matte black | PFI-323 (300ml) / PFI-123 (130ml) |
| Replacement: black, cyan, yellow | PFI-320 (300ml) / PFI-120 (130ml) |
| Replacement: magenta | PFI-321 (300ml) / PFI-121 (130ml) |
| Hardware | |
| Printer memory | 2 GB RAM |
| Display | 5-inch tilt touchscreen |
| Dimensions (approx., W x D x H) | With basket opened: 50.6 x 34.2 x 41.0 inches; with stand and basket closed: 50.6 x 29.8 x 41.0 inches |
| Weight (approx.) | 165.3 lbs |
| Power supply | AC 100 to 240 V (50 to 60 Hz) |
| Power consumption | Max: approx. 76W; standby: approx. 1.6W; power off: approx. 0.06W |
| Operating environment | 59 to 86°F; relative humidity 10% to 80% (non-condensing) |
| Connectivity and software | |
| Built-in connectivity | USB 2.0 Hi-Speed, 10/100/1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n) |
| Mobile printing | Apple AirPrint, Mopria Print Service |
| Operating systems | Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), macOS v10.12.6 to v13x |
| Software and utilities | Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, driver, Media Configuration Tool, PosterArtist |
| Certifications | |
| Environmental | ENERGY STAR certified, EPEAT 1.0 Gold, Mopria Certified |
*Canon measures print speed after the first print in Fast Q5 mode on plain paper, based on internal testing. Speed varies with the number of copies and the size, type, and orientation of the paper.
**Canon measures scan and copy speed on plain paper with the CAD (line drawing) document type, A1 read size, and standard quality.
Frequently Asked Questions
How wide can the Canon imagePROGRAF TM-610M print and scan?
The Canon imagePROGRAF TM-610M prints up to 36 inches wide and scans originals up to 36 inches wide. Canon lists a 36.5-inch maximum media width for scanning. Roll and cut-sheet media for printing run from 8 to 36 inches wide.
How fast does the Canon imagePROGRAF TM-610M print, scan, and copy?
Canon rates the imagePROGRAF TM-610M at up to 3.2 ARCH D (24 by 36 inches) prints per minute. Canon lists scan speeds of 5.0 inches per second in color and 10.0 in monochrome at 200 dpi, and color copies in 66 seconds at 200 dpi, measured with plain paper, the CAD line drawing type, and A1 read size.
Where can the Canon imagePROGRAF TM-610M send scans?
The Canon imagePROGRAF TM-610M scans to USB memory (FAT16, FAT32, or exFAT), email, and SMB. Canon lists a 600 dpi maximum resolution, and the maximum scan length is 326.9 inches for JPEG and 200 inches for PDF. Canon also lists up to 99 copies.
Can the Canon imagePROGRAF TM-610M scan creased or marked-up drawings?
Canon says the imagePROGRAF TM-610M uses dual LED illumination to reduce shadows on creased prints. Its scan presets cover CAD line drawings, blueprint and inverted blueprint conversions, tracing paper, posters and photos, and drawings or maps. Scan media can be up to 0.8 mm thick.
What comes in the box with the Canon imagePROGRAF TM-610M?
The Canon imagePROGRAF TM-610M box includes the printer, a stand with a stackable basket, starter ink tanks (130ml matte black and 90ml each of black, cyan, magenta, and yellow), one printhead, and an installed maintenance cartridge. Canon also lists a 2-inch roll holder with 3-inch adapters, a power cable, and setup paperwork.
How is the Canon imagePROGRAF TM-610M different from the TM-610?
The Canon imagePROGRAF TM-610M adds an integrated scanner and a 5-inch touchscreen to the TM-610. Canon lists the same approximate footprint for both, but the TM-610M weighs about 165.3 pounds versus 138.9 pounds and draws up to about 76 watts versus 65. Both print up to 36 inches wide.
What ink does the Canon imagePROGRAF TM-610M use?
The Canon imagePROGRAF TM-610M uses a five-color LUCIA TD pigment ink set and ships with a 130ml matte black tank and 90ml tanks of each other color. Replacement tanks come in 130ml and 300ml sizes: PFI-123 or PFI-323 for matte black, PFI-120 or PFI-320 for black, cyan, and yellow, and PFI-121 or PFI-321 for magenta.
