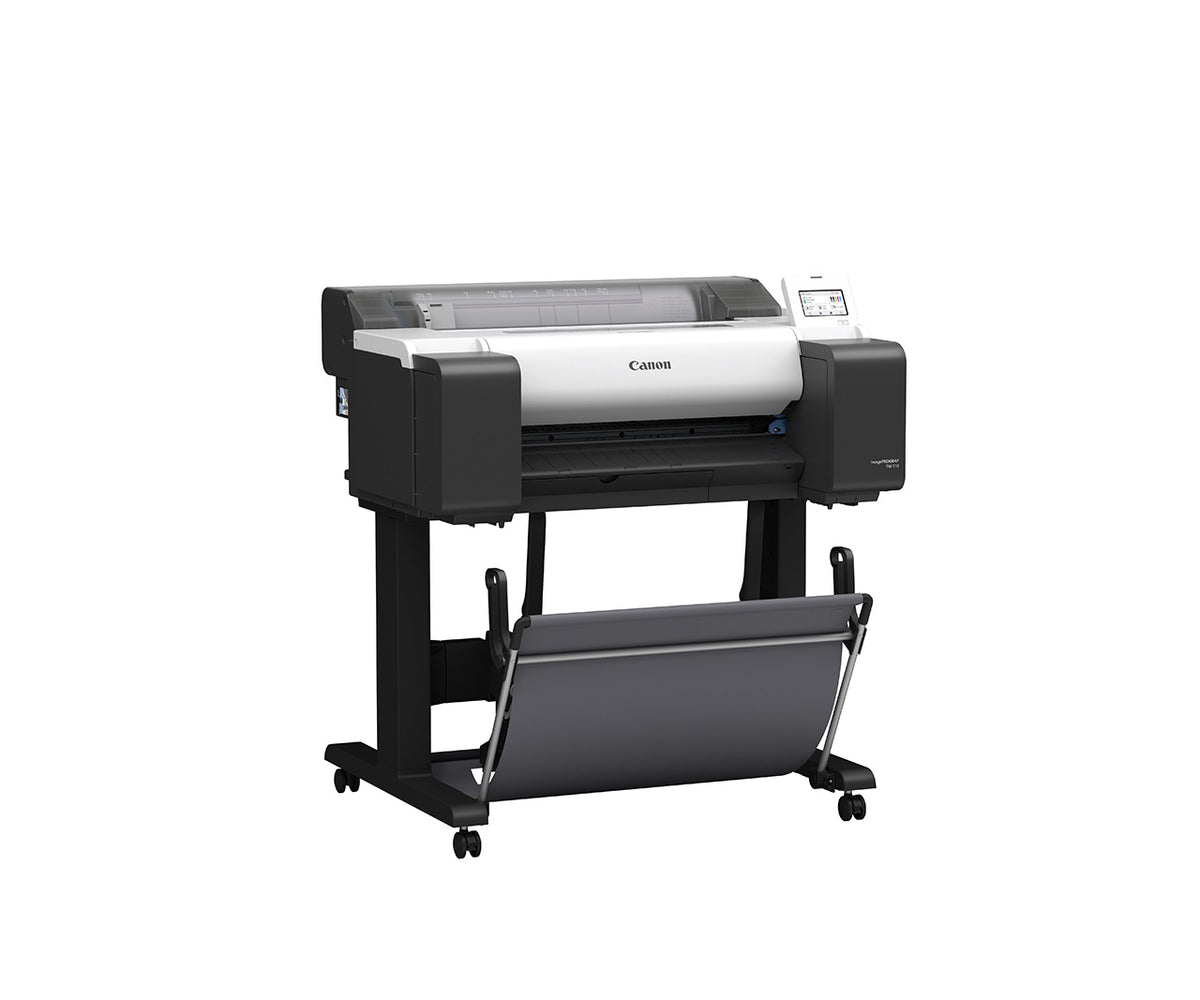

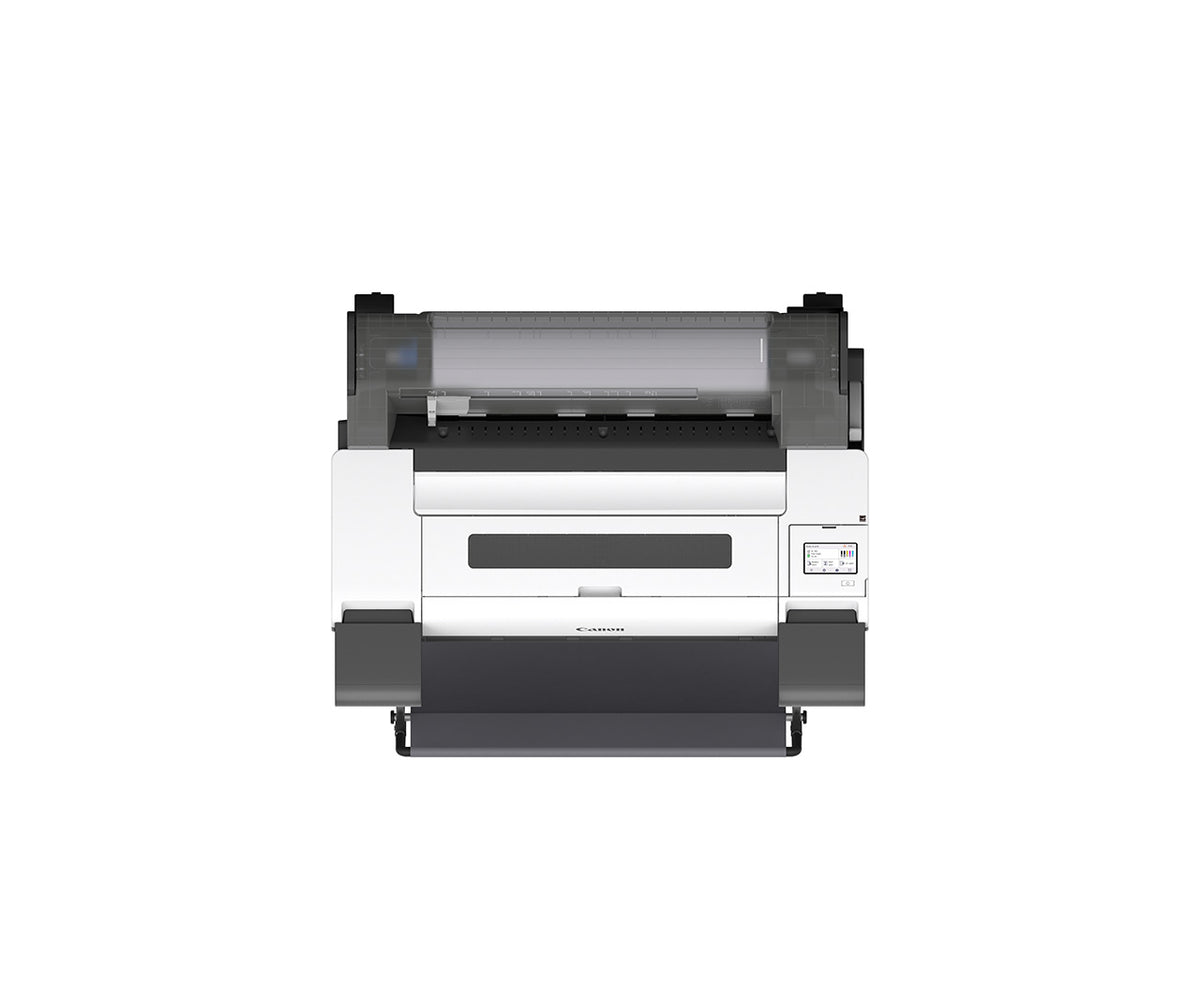

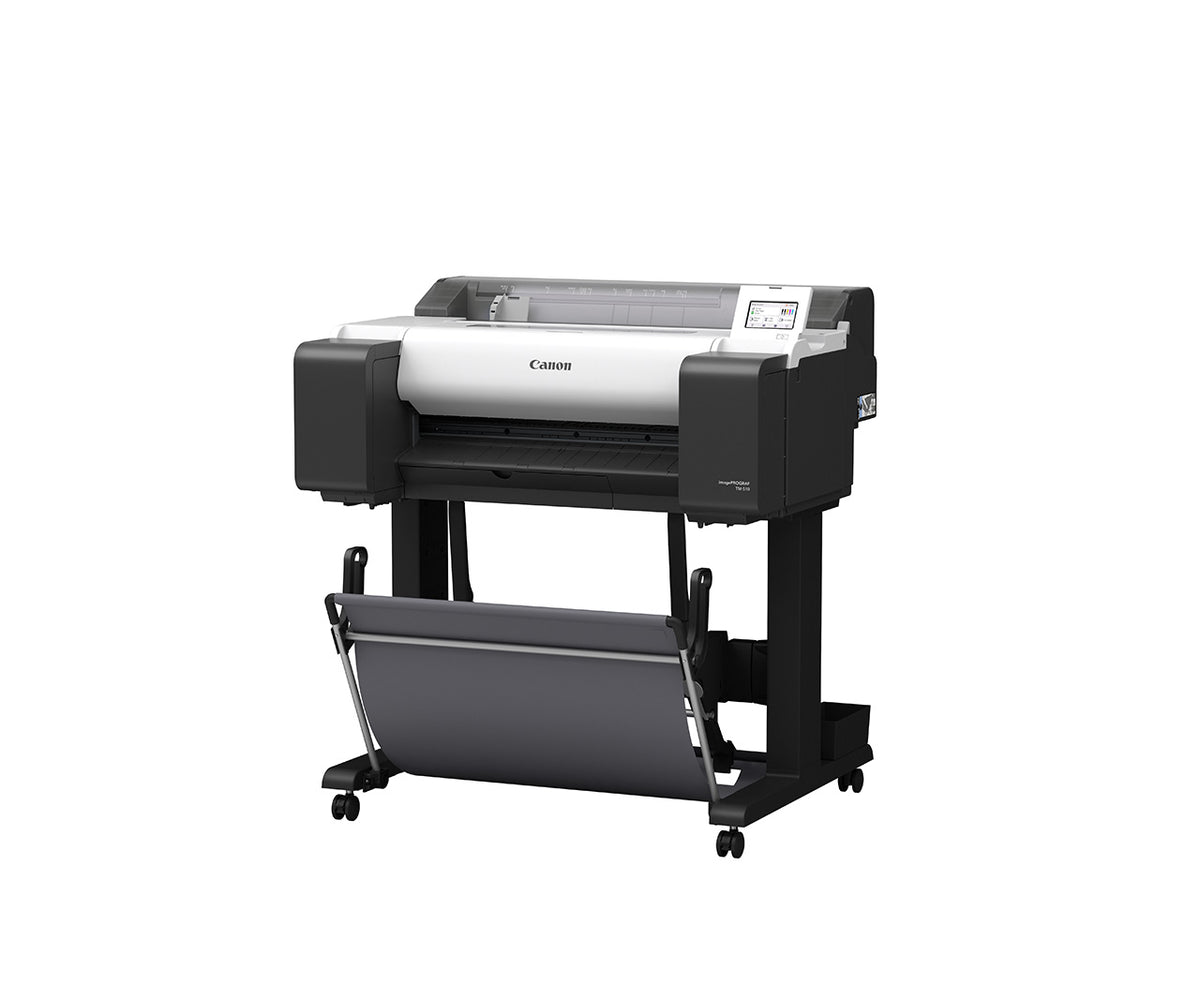

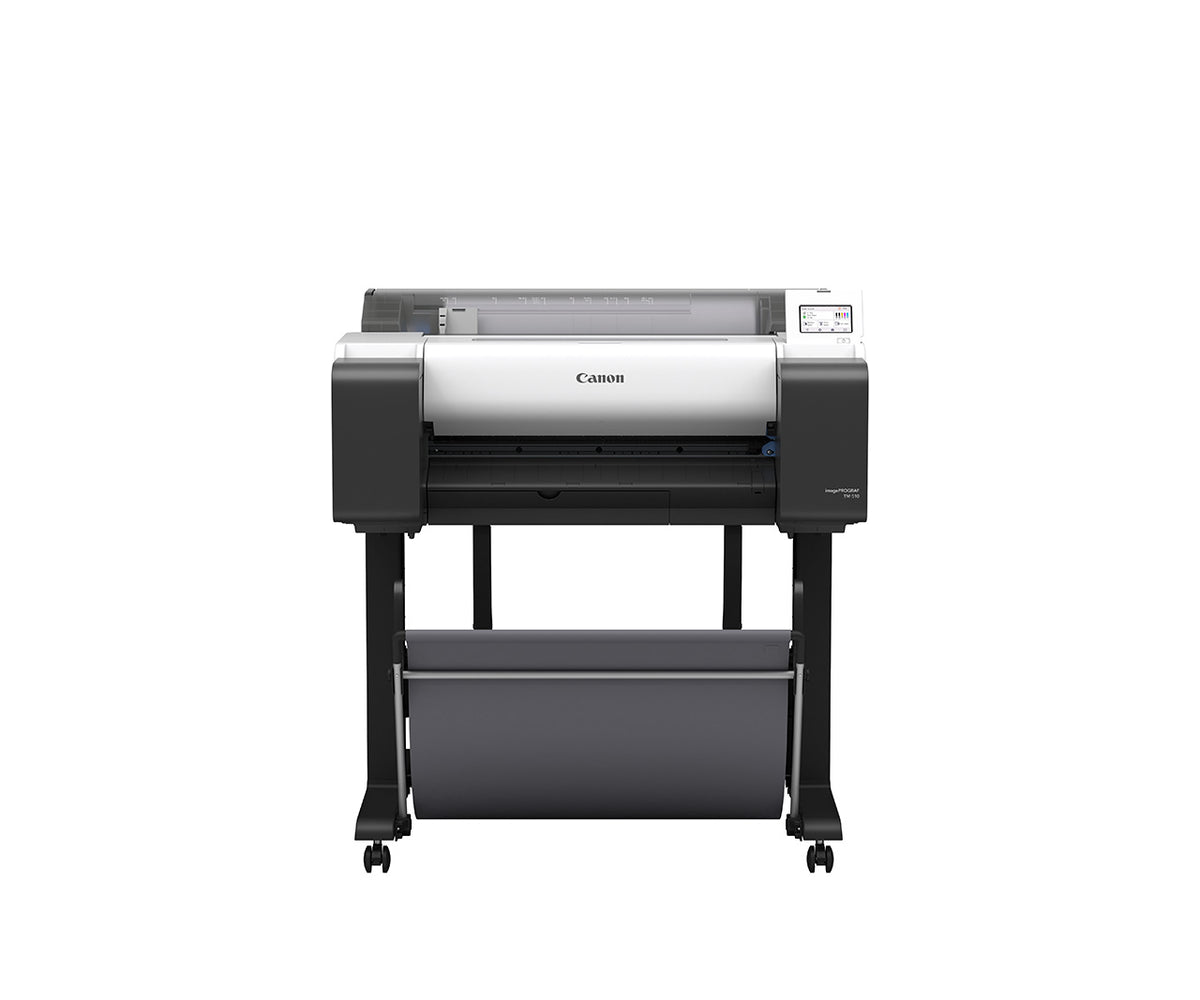

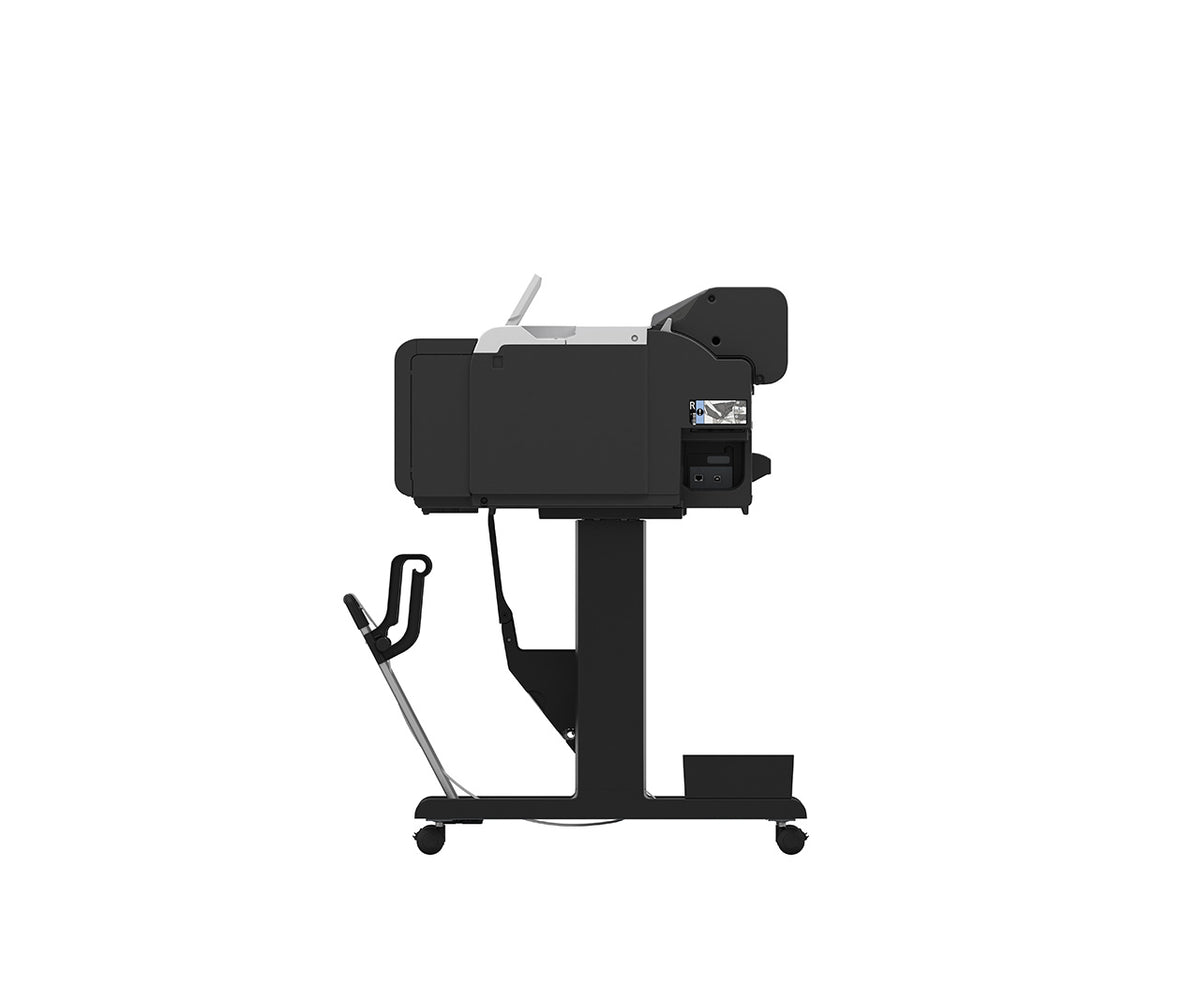

imagePROGRAF TM-510 24-Inch Canon Plotter

The Canon imagePROGRAF TM-510 is a 24-inch Canon wide-format printer for architecture, engineering, and construction teams that need fast CAD output in a compact footprint. Canon rates it at up to 2.9 ARCH D prints per minute, and it ships with 130ml matte black and 90ml color ink tanks.

Canon imagePROGRAF TM-510 Quick Facts

• Best for: CAD drawings and low-coverage posters in compact spaces
• Width: 24 inches maximum output width
• Ink: 5-color LUCIA TD pigment (MBK, BK, C, M, Y)
• Speed: Up to 2.9 ARCH D (24 by 36 inches) prints per minute, per Canon
• Resolution: 2,400 x 1,200 dpi maximum
• Connectivity: USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi (IEEE 802.11 b/g/n)

A 24-inch CAD plotter for bid sets, check sets, and busy small offices

• Crisper lines on plain paper. Canon says the reformulated matte black ink and image processing improvements give sharper lines and text, which matters when reviewers zoom in on dimensions and notes.
• Faster check sets. Canon rates the TM-510 at up to 2.9 ARCH D prints per minute, measured after the first print in Fast Q5 mode on plain paper.
• Larger tanks, fewer swaps. It ships with 130ml matte black and 90ml color tanks, and replacement tanks come in 130ml and 300ml sizes.
• Change ink mid-print. Canon's gravity-fed sub ink tank system lets you swap inks while the printer is printing.
• Fits small spaces. The flat-top body, full-front access to ink and media, and 4.3-inch tilt touchscreen suit a plan room or a corner of the office.
• Free batch tools. Direct Print Plus prints PDF, TIFF, JPEG, and HP-GL/2 files in batches, and Free Layout Plus can tile or arrange drawings.

Who this is not for: The TM-510 prints up to 24 inches wide and has no built-in scanner. If you need 36-inch output, look at Canon's 36-inch TM models. If you need scanning and copying, look at the TM-510M.

Not sure 24 inches is the right width for your drawing sizes and volume? Call TAVCO at 866-254-8590 before you buy and we'll help you sort out the fit.

Canon imagePROGRAF TM-510 Specifications

*Canon measures speed after the first print in Fast Q5 mode on plain paper, based on internal testing. Speed varies with the number of copies and the size, type, and orientation of the paper.

Frequently Asked Questions

How wide can the Canon imagePROGRAF TM-510 print?

The Canon imagePROGRAF TM-510 prints up to 24 inches wide. Canon positions it as a 24-inch technical documents large-format printer for CAD drawings and low-coverage posters, and it handles ARCH D (24 by 36 inches) sheets. If your work regularly needs 36-inch-wide output, check the width before you buy.

How fast is the Canon imagePROGRAF TM-510?

Canon rates the imagePROGRAF TM-510 at up to 2.9 ARCH D (24 by 36 inches) prints per minute. Canon measures this after the first print in Fast Q5 mode on plain paper, based on internal testing. Speed varies with the number of copies and with the size, type, and orientation of the paper.

What ink does the Canon imagePROGRAF TM-510 use?

The Canon imagePROGRAF TM-510 uses a five-color LUCIA TD pigment ink set: matte black, black, cyan, magenta, and yellow. It ships with a 130ml matte black tank and 90ml tanks of each other color, and replacement tanks come in 130ml and 300ml sizes. Canon says the reformulated matte black gives crisper lines and sharper text than the previous TM series.

Does the Canon imagePROGRAF TM-510 have Wi-Fi?

Yes. The Canon imagePROGRAF TM-510 includes built-in Wireless LAN (IEEE 802.11 b/g/n), USB 2.0 Hi-Speed, and 10/100/1000Base-T/TX Ethernet. Canon also lists Apple AirPrint and Mopria Print Service for printing from mobile devices, and the printer works with Windows, macOS, and ChromeOS.

What is the difference between the Canon imagePROGRAF TM-510 and the TM-510M?

The TM-510M adds an integrated scanner that the Canon imagePROGRAF TM-510 does not have. Canon lists the TM-510M at 600 dpi optical resolution and a 24-inch maximum scan width, with scan speeds up to 5 inches per second in color and 10 in monochrome. The TM-510 is print-only.

How is the Canon imagePROGRAF TM-510 different from the TM-500?

The Canon imagePROGRAF TM-510 is faster and ships with larger ink tanks than the TM-500. Canon rates the TM-510 at up to 2.9 ARCH D prints per minute versus 2.4 for the TM-500. The TM-510 ships with 130ml matte black and 90ml color tanks, while the TM-500 ships with 80ml and 55ml tanks. Both are 24-inch models.

What software comes with the Canon imagePROGRAF TM-510?

Canon lists free software for the imagePROGRAF TM-510: Direct Print Plus for batch printing PDF, TIFF, JPEG, and HP-GL/2 files, Free Layout Plus for tiling and arranging drawings, PosterArtist online, Accounting Manager for tracking ink and paper use, and the Media Configuration Tool. A Quick Toolbox utility and the printer driver are also listed.
