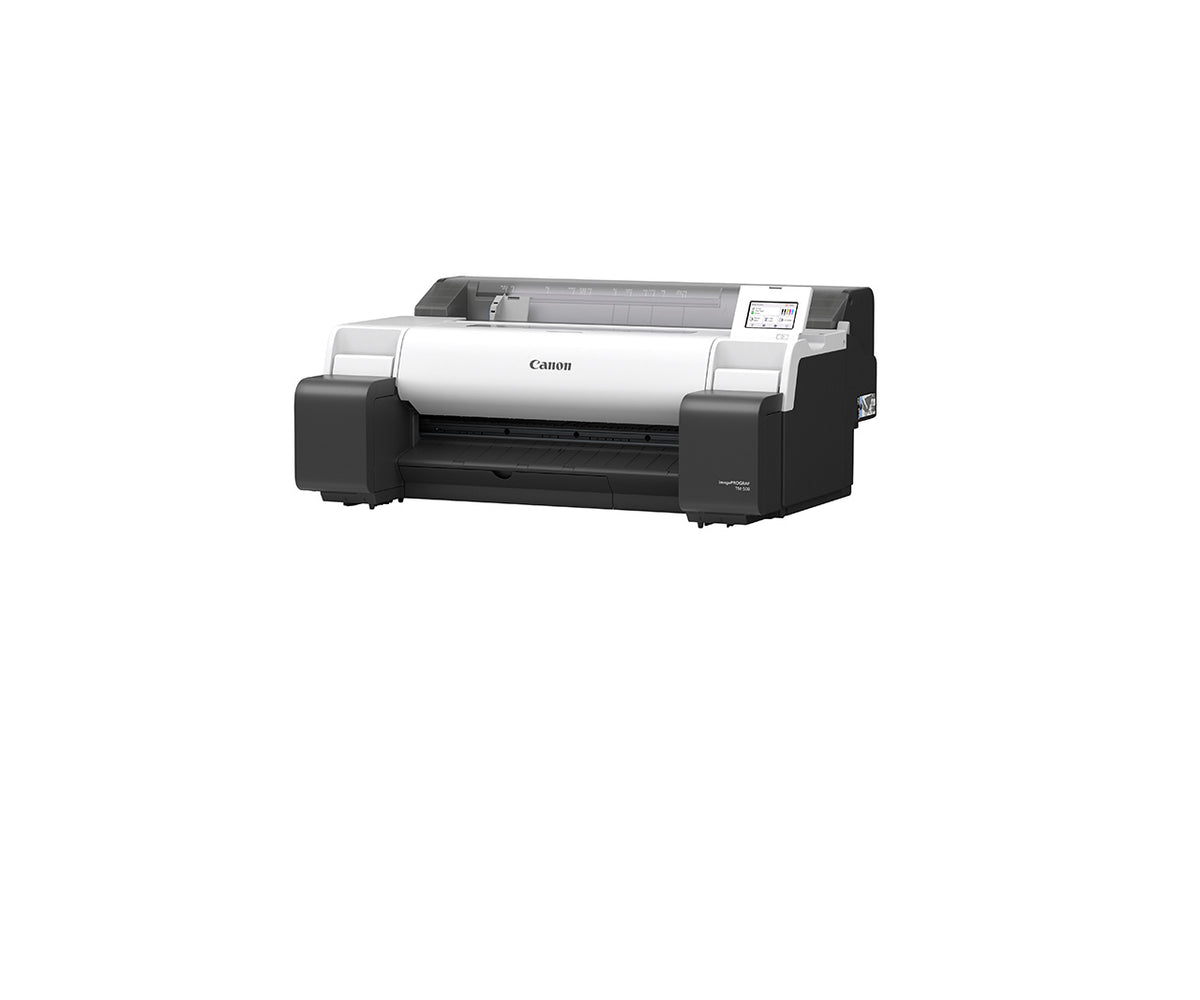

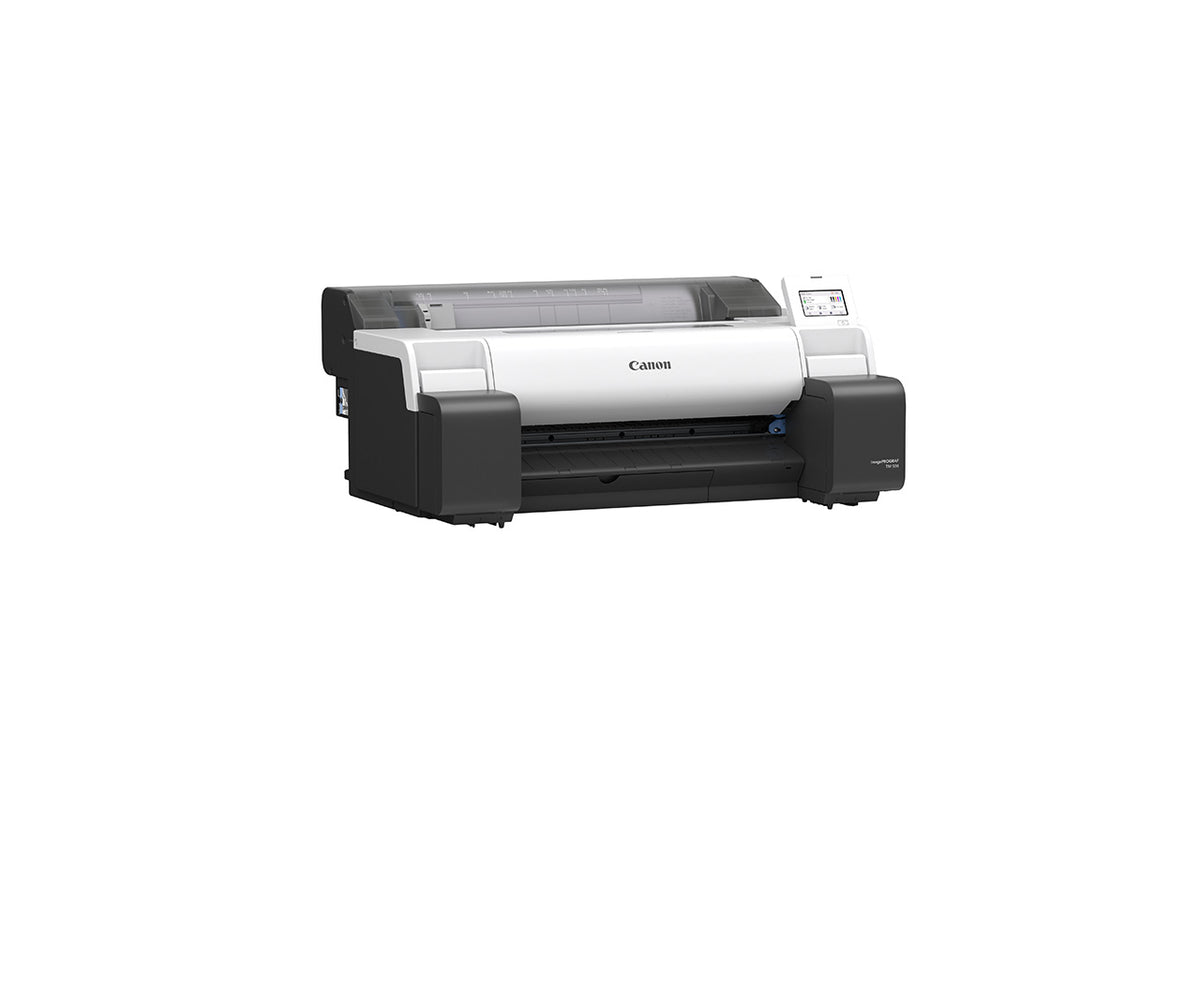

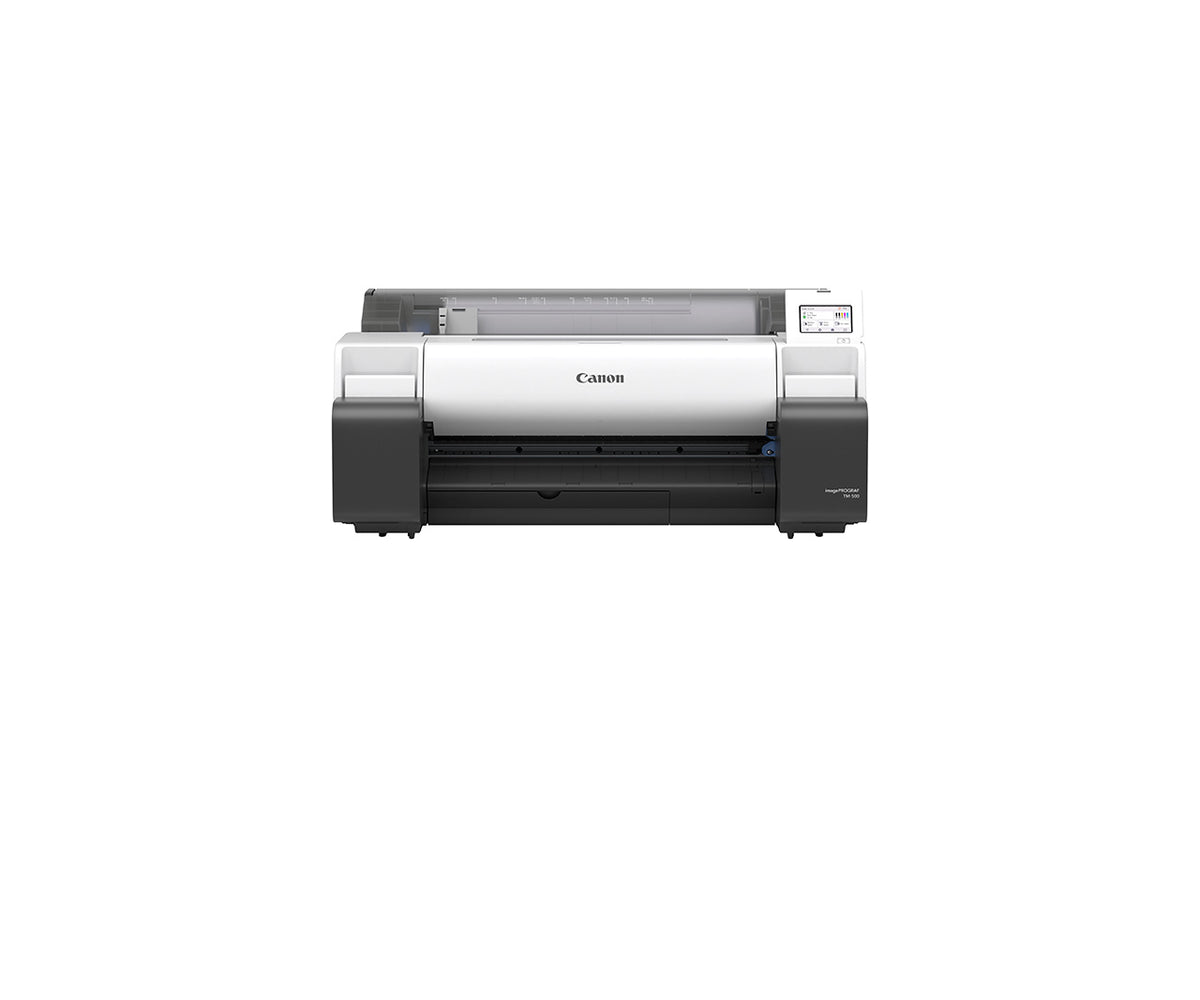

imagePROGRAF TM-500 24-Inch Canon Plotter

The Canon imagePROGRAF TM-500 is a 24-inch Canon wide-format printer for architecture, engineering, and construction teams that print CAD drawings in a small space. Canon rates it at up to 2.4 ARCH D prints per minute, and its five-color pigment ink set uses a reformulated matte black for sharper lines.

Canon imagePROGRAF TM-500 Quick Facts

• Best for: CAD drawings and low-coverage posters in compact spaces
• Width: 24 inches maximum output width
• Ink: 5-color LUCIA TD pigment (MBK, BK, C, M, Y)
• Speed: Up to 2.4 ARCH D (24 by 36 inches) prints per minute, per Canon
• Resolution: 2,400 x 1,200 dpi maximum
• Connectivity: USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi (IEEE 802.11 b/g/n)

A 24-inch CAD plotter for bid sets, check sets, and small-office printing

• Crisper lines on plain paper. Canon says the reformulated matte black ink and image processing improvements give sharper lines and text, which matters when reviewers zoom in on dimensions and notes.

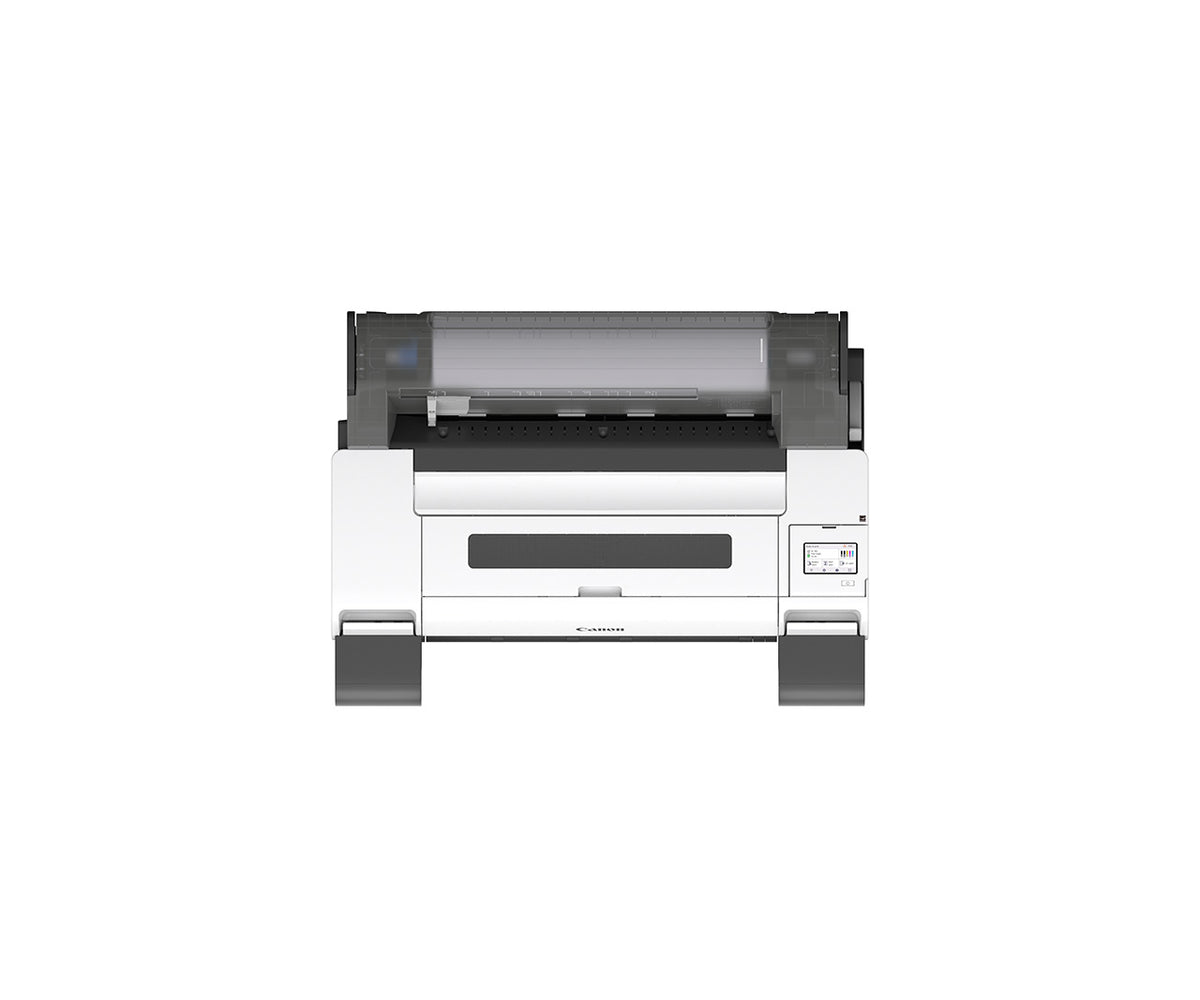

• Fits small spaces. The flat-top body, full-front access to ink and media, and 4.3-inch tilt touchscreen suit a plan room or a corner of the office.
• Check sets without the wait. Canon rates the TM-500 at up to 2.4 ARCH D prints per minute, measured after the first print in Fast Q5 mode on plain paper.
• Simpler roll loading. After you feed the roll, the printer detects media type and width and estimates how much roll is left.
• Free batch tools. Direct Print Plus prints PDF, TIFF, JPEG, and HP-GL/2 files in batches, and Free Layout Plus can tile or arrange drawings.
• Network security controls. Canon lists TLS 1.3, 802.1X, SNMP v3, and PIN code authorization for the TM Series, so IT has settings to review before the printer joins your network.

Who this is not for: The TM-500 prints up to 24 inches wide and has no built-in scanner. If you need 36-inch output or scanning, look at Canon's 36-inch TM models or a 24-inch MFP such as the TM-510M.

Not sure 24 inches is the right width for your drawing sizes and volume? Call TAVCO at 866-254-8590 before you buy and we'll help you sort out the fit.

Canon imagePROGRAF TM-500 Specifications

*Canon measures speed after the first print in Fast Q5 mode on plain paper, based on internal testing. Speed varies with the number of copies and the size, type, and orientation of the paper.

Frequently Asked Questions

How wide can the Canon imagePROGRAF TM-500 print?

The Canon imagePROGRAF TM-500 prints up to 24 inches wide. Canon positions it as a 24-inch technical documents large-format printer for CAD drawings and low-coverage posters, and it handles ARCH D (24 by 36 inches) sheets. If your work regularly needs 36-inch-wide output, check the width before you buy.

How fast is the Canon imagePROGRAF TM-500?

Canon rates the imagePROGRAF TM-500 at up to 2.4 ARCH D (24 by 36 inches) prints per minute. Canon measures this after the first print in Fast Q5 mode on plain paper, based on internal testing. Speed varies with the number of copies and with the size, type, and orientation of the paper.

What ink does the Canon imagePROGRAF TM-500 use?

The Canon imagePROGRAF TM-500 uses a five-color LUCIA TD pigment ink set: matte black, black, cyan, magenta, and yellow. It ships with an 80ml matte black tank and 55ml tanks of each other color, and replacement tanks are 55ml. Canon says the reformulated matte black gives crisper lines and sharper text than the previous TM series.

Does the Canon imagePROGRAF TM-500 have Wi-Fi?

Yes. The Canon imagePROGRAF TM-500 includes built-in Wireless LAN (IEEE 802.11 b/g/n), USB 2.0 Hi-Speed, and 10/100/1000Base-T/TX Ethernet. Canon also lists Apple AirPrint and Mopria Print Service for printing from mobile devices, and the printer works with Windows, macOS, and ChromeOS.

Does the Canon imagePROGRAF TM-500 have a built-in scanner?

No. The Canon imagePROGRAF TM-500 is a print-only Canon plotter. Canon's integrated scanner is available on the 24-inch TM-510M and the 36-inch TM-610M, which list 600 dpi optical scan resolution. If you want scanning and copying in the same footprint, look at those MFP models instead.

How is the Canon imagePROGRAF TM-500 different from the TM-510?

The Canon imagePROGRAF TM-500 is slower and ships with smaller ink tanks than the TM-510. Canon rates the TM-500 at up to 2.4 ARCH D prints per minute versus 2.9 for the TM-510. The TM-500 ships with an 80ml matte black tank and 55ml color tanks, while the TM-510 ships with 130ml and 90ml tanks.

What software comes with the Canon imagePROGRAF TM-500?

Canon lists free software for the imagePROGRAF TM-500: Direct Print Plus for batch printing PDF, TIFF, JPEG, and HP-GL/2 files, Free Layout Plus for tiling and arranging drawings, PosterArtist online, Accounting Manager for tracking ink and paper use, and the Media Configuration Tool. A Quick Toolbox utility and the printer driver are also listed.
