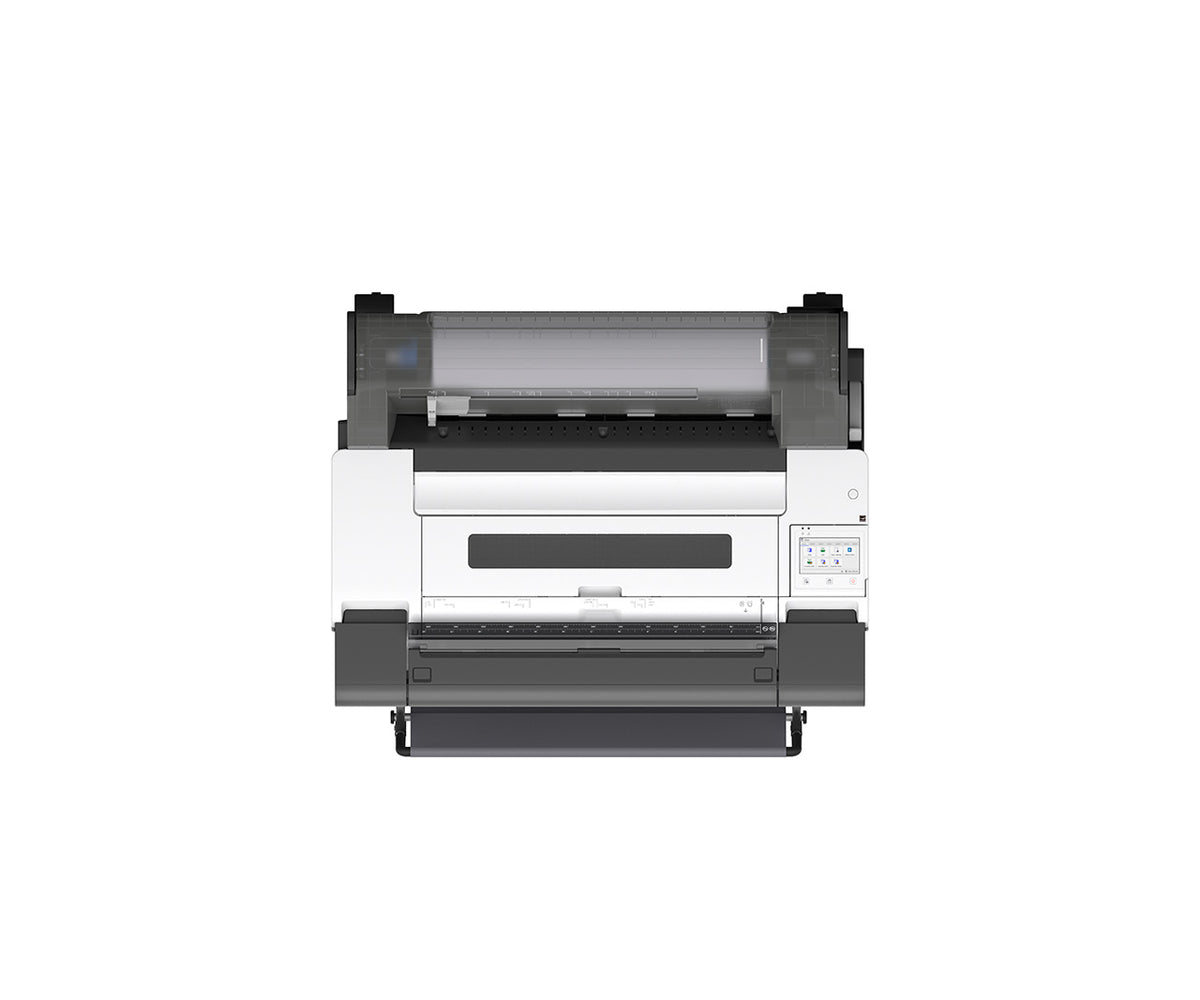

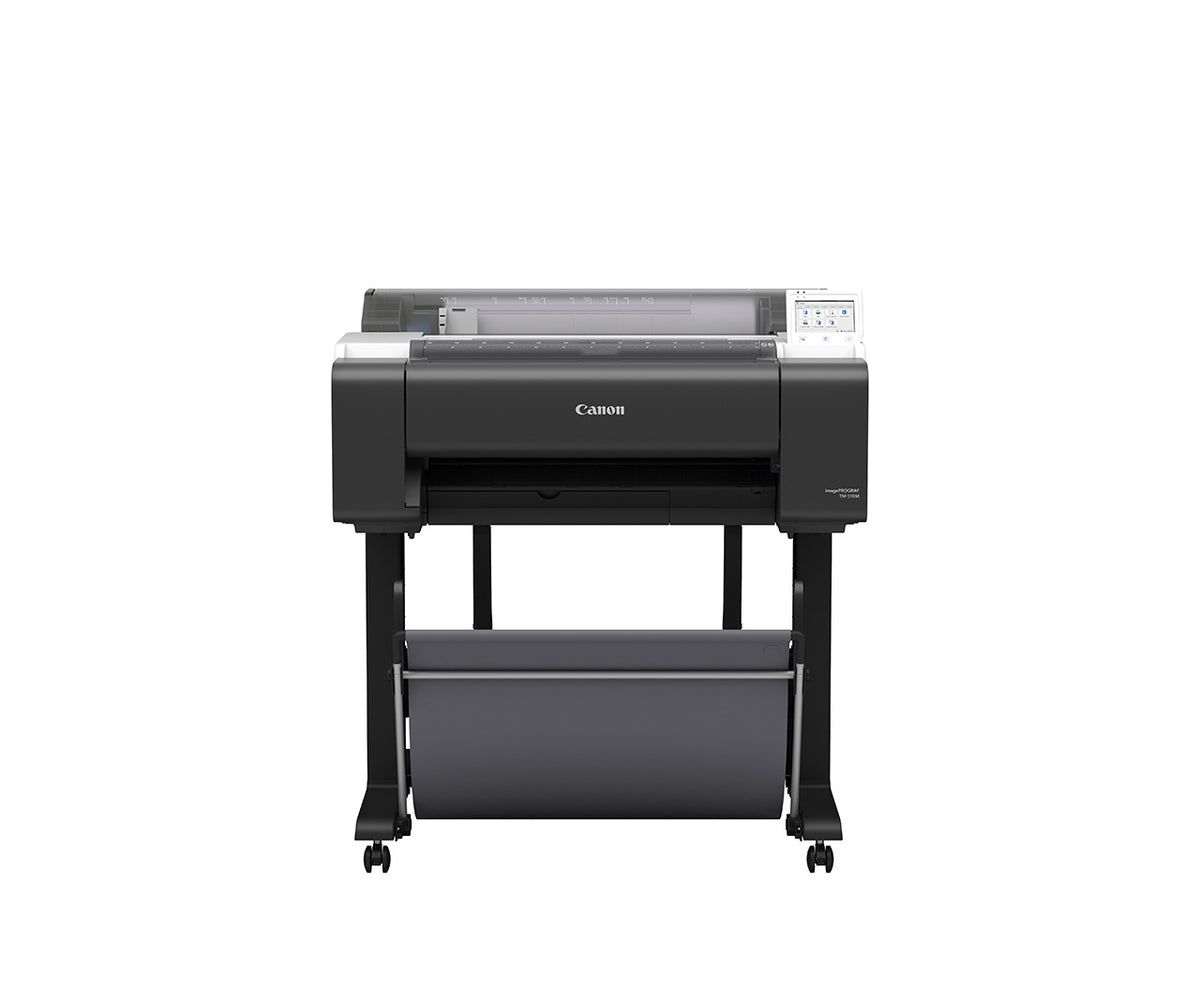

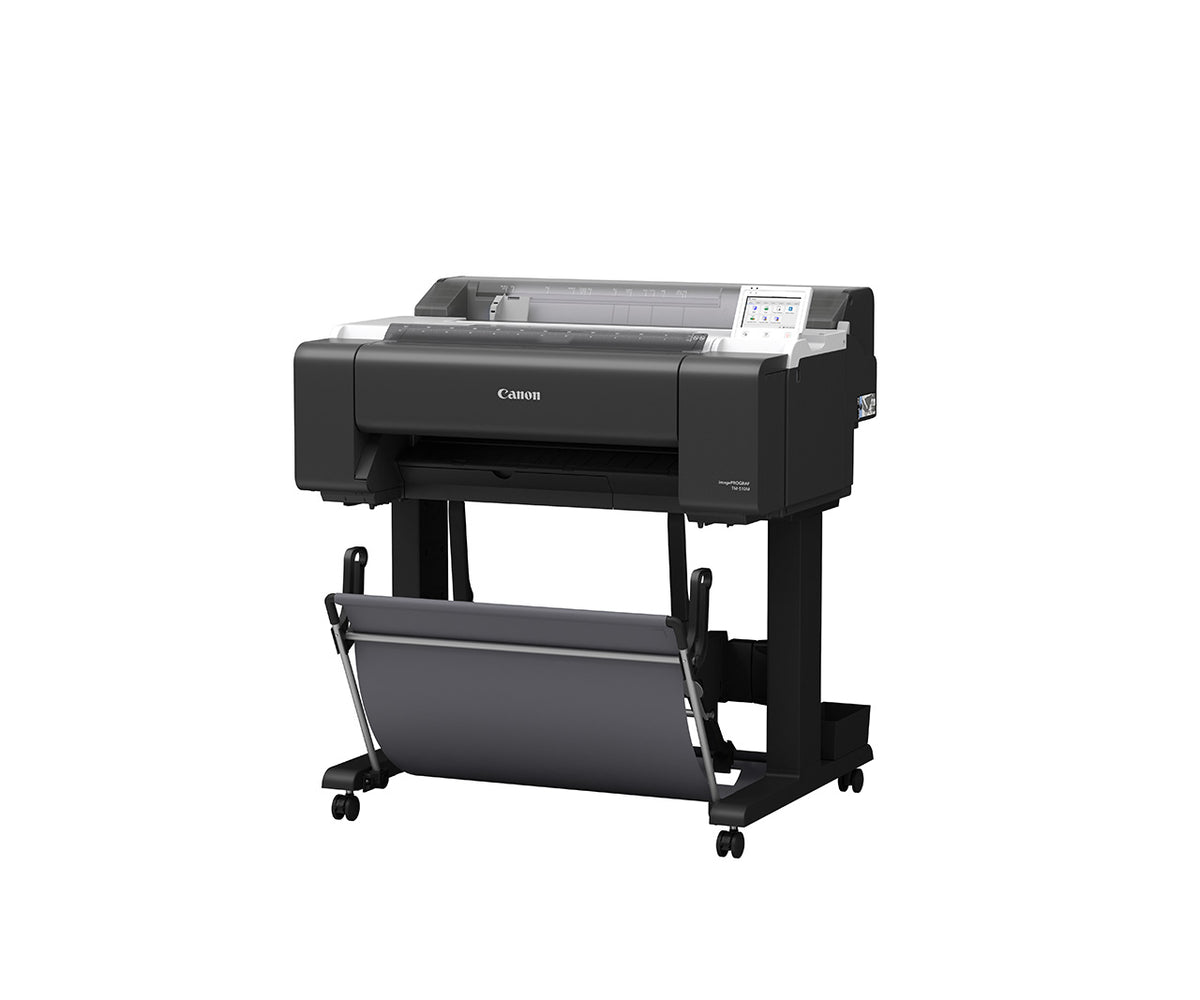

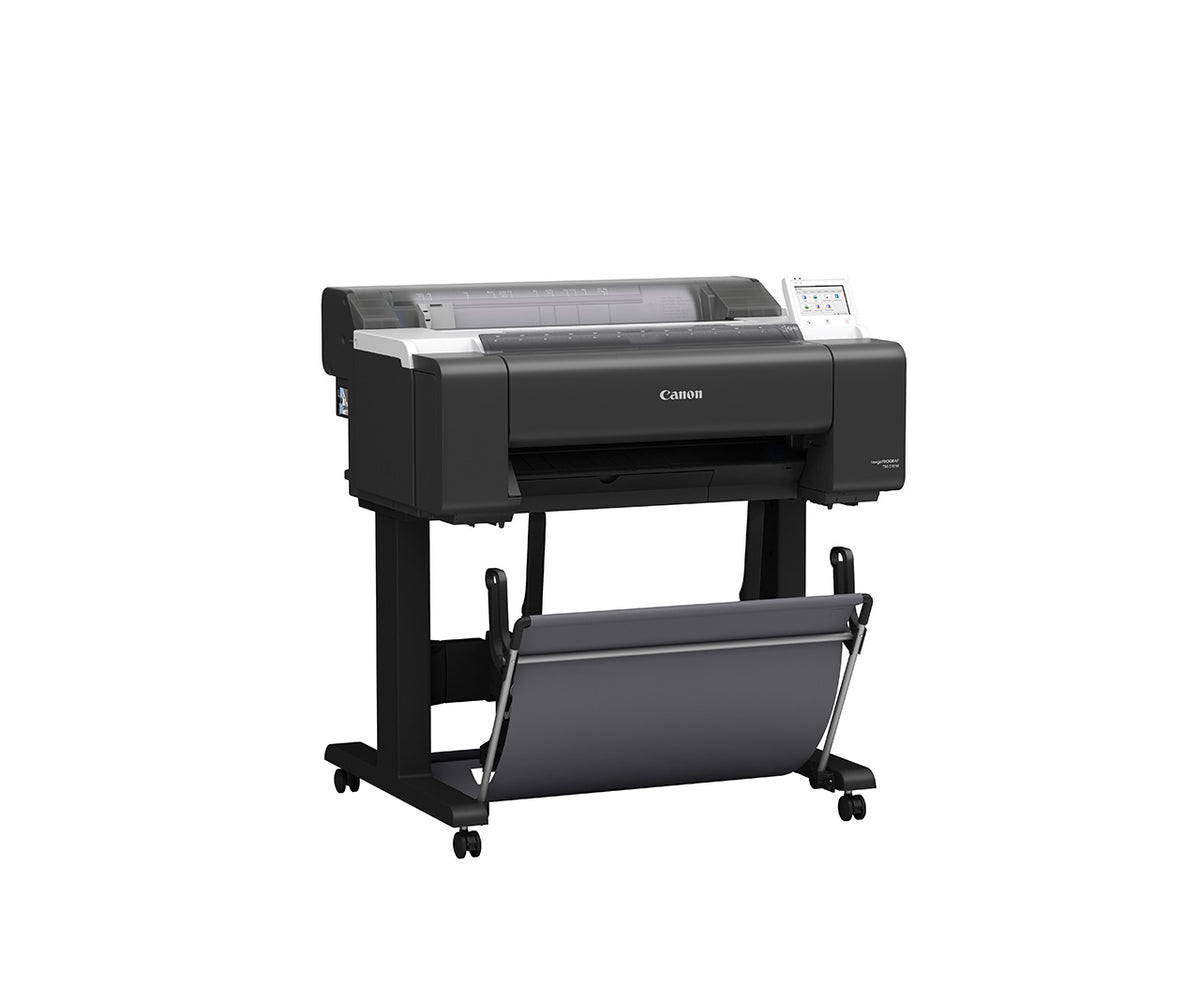

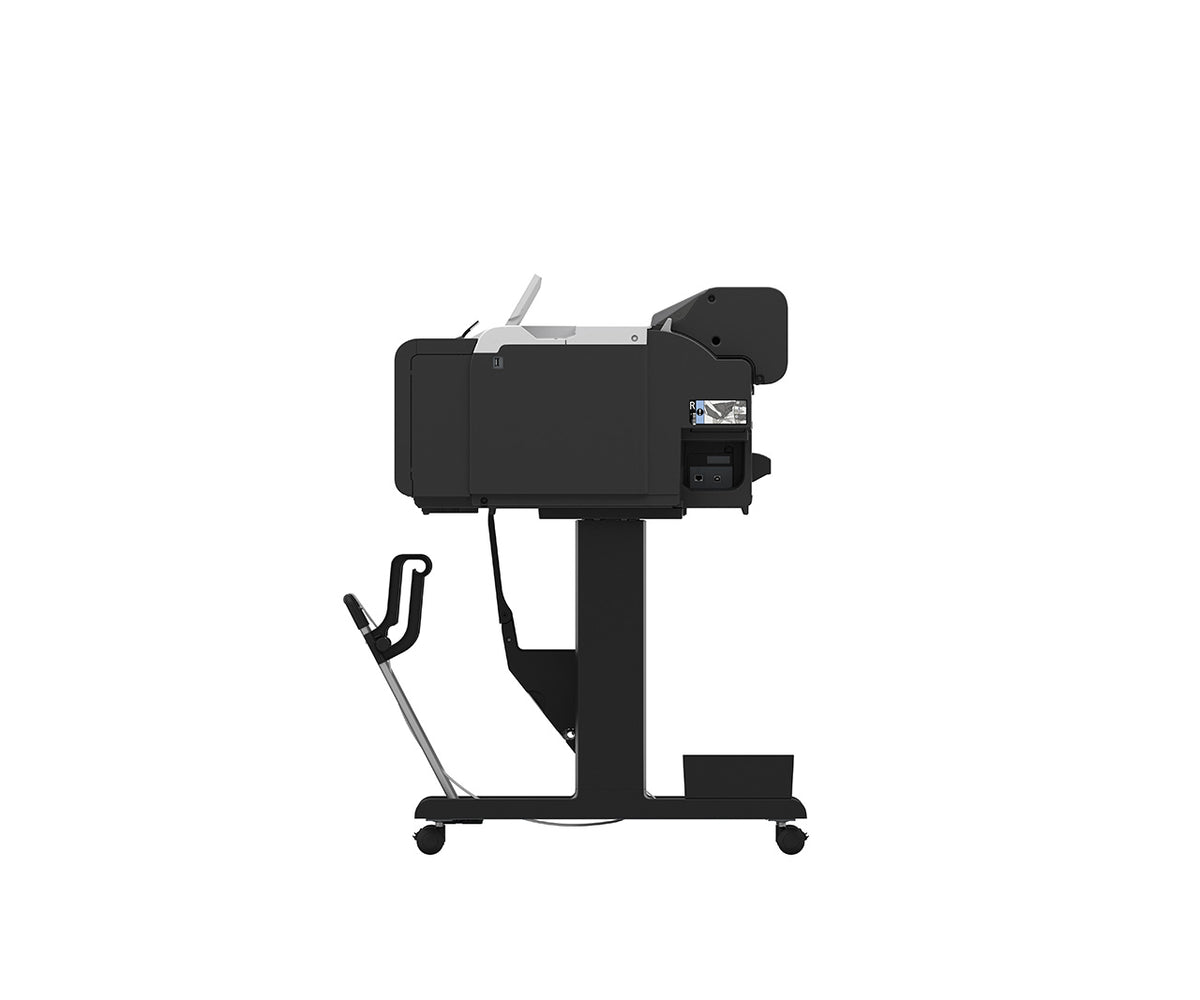

imagePROGRAF TM-510M 24-Inch Canon MFP Plotter

The Canon imagePROGRAF TM-510M is a 24-inch Canon wide-format printer with a built-in scanner, so architecture, engineering, and construction teams can print, scan, and copy drawings on one device. Canon calls it the first imagePROGRAF with an integrated large-format scanner and rates its print speed at up to 2.9 ARCH D prints per minute.

Canon imagePROGRAF TM-510M Quick Facts

• Best for: Offices that print, scan, and copy CAD drawings on one device
• Width: 24 inches maximum print width and 24 inches maximum scan width
• Ink: 5-color LUCIA TD pigment (MBK, BK, C, M, Y)
• Print speed: Up to 2.9 ARCH D (24 by 36 inches) prints per minute, per Canon
• Scanner: 600 dpi maximum optical resolution, up to 10 inches per second in monochrome
• Connectivity: USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi (IEEE 802.11 b/g/n)

A 24-inch CAD plotter and scanner for redlines, as-builts, and check sets

• Scan, copy, and print in one footprint. The integrated scanner sits in the flat-top body, so marked-up sets can be scanned to USB, email, or SMB without a separate scanner.
• Presets for drawings. Canon lists presets for CAD line drawings, tracing paper, black-and-white blue and blue invert originals, posters and photos, and drawings or maps.
• Creased originals. Canon says dual LED illumination reduces shadows on creased prints.
• Fast scanning. Canon says users can scan up to 5 inches per second in color and 10 inches per second in monochrome.
• One touchscreen for both jobs. The 5-inch tilt panel controls the printer and the scanner, and you can rearrange frequently used settings.
• Crisper print lines on plain paper. Canon says the reformulated matte black ink gives sharper lines and text.
• Larger tanks. It ships with 130ml matte black and 90ml color tanks, and replacement tanks come in 130ml and 300ml sizes.

Who this is not for: The TM-510M prints and scans up to 24 inches wide. If you need 36-inch output, look at the 36-inch TM-610M. If you only print and never scan, the 24-inch TM-510 covers the same print width.

Not sure an MFP is the right fit for your drawing sizes and volume? Call TAVCO at 866-254-8590 before you buy and we'll help you sort out the fit.

Canon imagePROGRAF TM-510M Specifications

*Canon measures print speed after the first print in Fast Q5 mode on plain paper, based on internal testing. Speed varies with the number of copies and the size, type, and orientation of the paper.

**Canon measures copy time at 200 dpi on plain paper, with plain paper copy settings, CAD (line drawing) document type, A1 read size, and standard quality. Canon notes some security features may affect performance and recommends testing settings in your environment.

Frequently Asked Questions

How wide can the Canon imagePROGRAF TM-510M print and scan?

The Canon imagePROGRAF TM-510M prints up to 24 inches wide and scans originals up to 24 inches wide. Canon lists a 24.5-inch maximum document width and a 6-inch minimum scan width. For wider originals or output, look at the 36-inch TM-610M.

How fast does the Canon imagePROGRAF TM-510M print and scan?

Canon rates the imagePROGRAF TM-510M at up to 2.9 ARCH D (24 by 36 inches) prints per minute, measured after the first print in Fast Q5 mode on plain paper. Canon says scanning runs up to 5 inches per second in color and 10 inches per second in monochrome, and color copies can take as little as 66 seconds under its test conditions.

Where can the Canon imagePROGRAF TM-510M send scans?

The Canon imagePROGRAF TM-510M scans to USB memory (FAT16, FAT32, or exFAT), email, and SMB. Canon lists a 600 dpi maximum optical resolution, and the maximum scanning length is 326.9 inches for JPG and 200 inches for PDF at 200 dpi. Maximum media thickness is 0.8 mm.

Can the Canon imagePROGRAF TM-510M scan creased or marked-up drawings?

Canon says the imagePROGRAF TM-510M uses dual LED illumination to reduce shadows on creased prints. It also offers scan and copy presets for CAD line drawings, tracing paper, black-and-white blue and blue invert originals, posters and photos, and drawings or maps. Maximum media thickness is 0.8 mm.

Does the Canon imagePROGRAF TM-510M have Wi-Fi?

Yes. The Canon imagePROGRAF TM-510M includes built-in Wireless LAN (IEEE 802.11 b/g/n), USB 2.0 Hi-Speed, and 10/100/1000Base-T/TX Ethernet. Canon also lists Apple AirPrint and Mopria Print Service for printing from mobile devices, and the printer works with Windows, macOS, and ChromeOS.

How is the Canon imagePROGRAF TM-510M different from the TM-510?

Compared with the TM-510, the Canon imagePROGRAF TM-510M adds an integrated scanner and a 5-inch touchscreen. Canon lists the TM-510 with a 4.3-inch touchscreen and no scanner. Canon also lists whitelisting as a security feature for the TM-510M and TM-610M only. Both are 24-inch models rated by Canon at up to 2.9 ARCH D prints per minute.

What ink does the Canon imagePROGRAF TM-510M use?

The Canon imagePROGRAF TM-510M uses a five-color LUCIA TD pigment ink set: matte black, black, cyan, magenta, and yellow. It ships with a 130ml matte black tank and 90ml tanks of each other color, and replacement tanks come in 130ml and 300ml sizes. Canon says the reformulated matte black gives crisper lines and sharper text than the previous TM series.

Texas Service and Support

TAVCO has sold and serviced Canon imagePROGRAF and HP DesignJet printers since 1984, and is an authorized Canon dealer based in Hutto, Texas. We provide on-site service within roughly 200 miles of Austin, including San Antonio, Greater Houston, Dallas, Waco, Bryan-College Station, Corpus Christi, and Victoria. Service plans are flat-rate with no click charges, we service equipment regardless of where it was purchased, and we ship equipment and supplies nationwide.

*The Canon TM-510M replaces the Cnaon TM-250 MFP Lm24
