Description

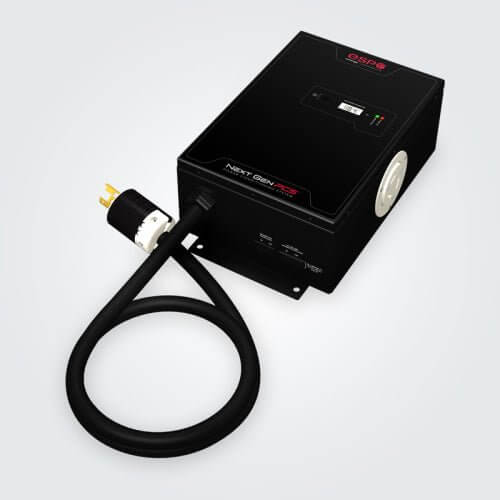

Electronic Systems Protection (ESP) - Next Gen PCS is the ultimate tool to protect electronic equipment from damaging power disturbances and diagnose the power environment at your business.
Engineered with state-of-the-art diagnostic software, the Next Gen PCS enables service teams to monitor power and proactively safeguard equipment from power disturbances in and out of the field. When combined with the ESP Remote Portal module, the data is available remotely through a login dashboard. Plus, the Next Gen PCS will send alerts when a power problem is detected.
The Next Gen PCS records time-stamped power abnormalities  and enables settings to be customized instantaneously. The Next Gen solution also includes professional-grade Multi-Stage power protection to safeguard connected equipment from damaging surges, spikes, over/under voltages, and wiring faults that can damage equipment.
| Model Number | Plug | Receptacles | Description |
| XG-PCS-15D |
NEMA 5-15P |
NEMA 5-15R |
ESP Next Gen PCS Diagnostic Power Filter, Diagnostic Software Included, 120V/15A, 1 Pigtail +2 Receptacles, Networked |
| XG-PCS-20D |
NEMA 5-20P |
NEMA 5-20R
NEMA 5-15R |
ESP Next Gen PCS Diagnostic Power Filter, Diagnostic Software Included, 120V/20A, 1 Pigtail +2 Receptacles, Networked |
| XG-PCS-20815D |
NEMA 6-15P |
NEMA 6-15R |
ESP Next Gen PCS Diagnostic Power Filter, Diagnostic Software Included, 208V/15A, 1 Pigtail, Networked |
| XG-PCS-20820D |
NEMA 6-20P |
NEMA 6-20R |
ESP Next Gen PCS Diagnostic Power Filter, Diagnostic Software Included, 208V/20A, 1 Pigtail, Networked |

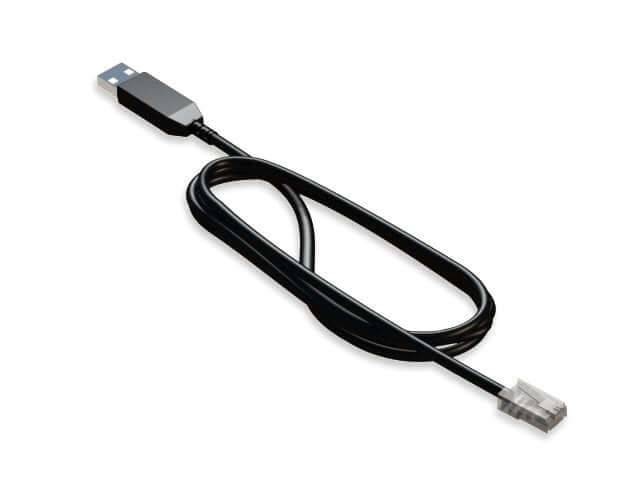

| XG-PCS-IC-1 | n/a | n/a | Next Gen PCS Interface Cord (1 each) |
| RP-IP | 5V, 500mA, USB Mini | (1) RJ45 Server Port | Allows remote IP access to ESP diagnostic software, RJ25 6p6c Standard Pinout |
(3x)
(1x)
(2x)
(1x)
(1x)
ESP Power Filters are backed by Ametek's Peace of Mind Guarantee for up to $100,000 in repair or replacement costs. Please contact TAVCO for more details.
