BricsCAD Mechanical for Assembly Modeling

Save $66.00

License type: Perpetual license - SINGLE + 1-yr maintenance (non-floating)
Sale price$2,070.00 Regular price$2,136.00
In stock


Work and design faster.

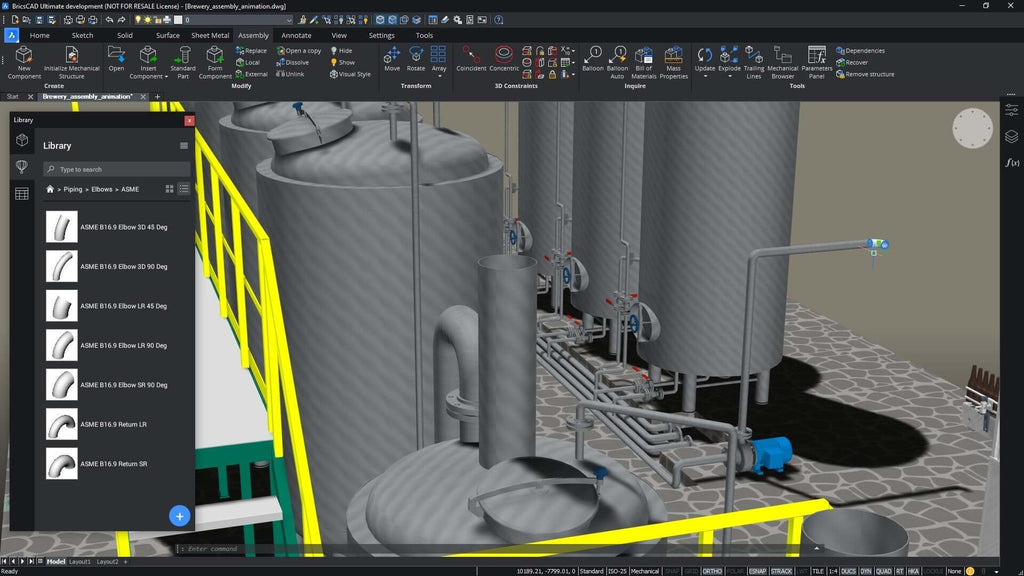

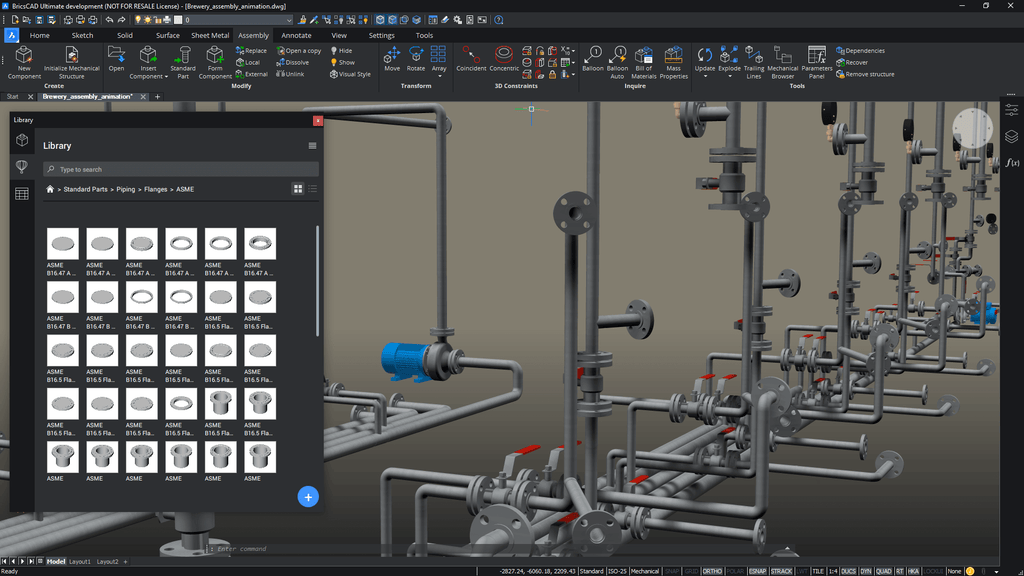

Create assemblies of parts to organize your complex 3D models

Flexible licensing options – subscription or perpetual seats

Download a free 30-day trial of BricsCAD

Payment plans available - get a quote

BricsCAD Mechanical is no compromise CAD software that lets you design any shape easily using BricsCAD’s powerful 3D Direct Modeler. Free from the limitations of history-based systems, BricsCAD’s Direct Modeler treats native and imported geometry the same way.

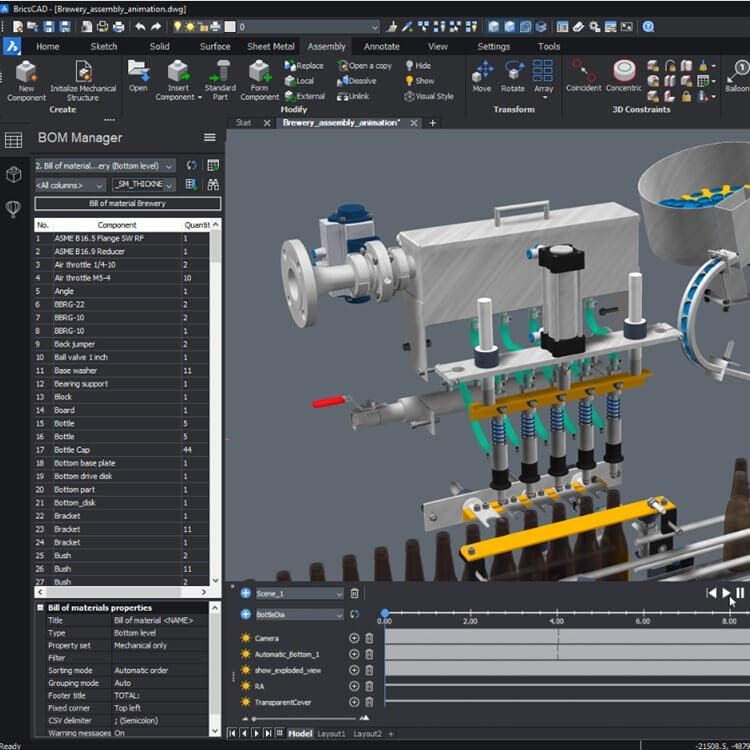

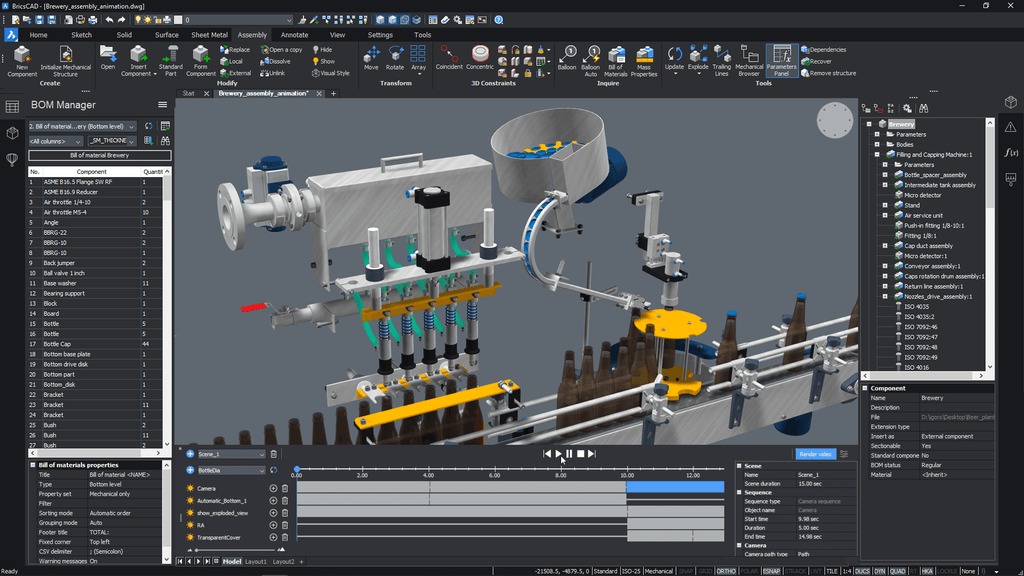

Create or edit complex hierarchies of parts and subassemblies
using the full power of direct modeling.

Design sheet metal parts that are resilient and deeply editable

BricsCAD harnesses the dynamic power of DWG files. It brings a familiar suite of drafting tools, plus the ability to customize your workflow with the power of LISP routines.

Leverage what you already know with full command, script, macro, and menu compatibility. Command names, aliases, and system variables are the same as other industry-leading applications.

BricsCAD is based on native DWG for the highest compatibility with other CAD users across all industries.

  • Command compatible
  • Menu (.CUI, .CUIX) compatible
  • Marcro/script compatible
  • Support file (.PC3, .LIN, .PAT, .DWT, .SSM) compatible
  • Based on the 2018 DWG technology

1-Year Maintenance Included with License(s)

  • Priority support
  • Free major upgrades for one year
  • Access to BricsCAD cloud (1 GB included - storage upgrades available)

BricsCAD PRO Primary Features

  • 100% Real DWG
  • LISP API with Visual Editor
  • 2D Constraint Management
  • AI: Blockify, MoveGuided
  • 3D Direct Modeling

    Familiar CAD tools

    • Re-use AutoCAD Customizations
    • 100% Real DWG
    • Powerful, compatible LISP API
    • 2D constraint manager

    System requirements

     Operating systems  Microsoft Windows
    • Windows 10 (64-bit)
    • Windows 8 (64-bit)
    • Windows Server 2008 R2
    • Windows Server 2008 with Service Pack 2 or higher
     Mac OSX 10.13 or higher
    • Ubuntu 10.04 or higher
    • openSUSE (Newer than April 2018)
    • Fedora
       Processor  Intel or AMD CPU, 1ghz or faster
       Memory  1 GB
       Hard drive  1 GB for program files + 1 GB free space
       Display resolution  1024 x 768 XGA with True Color
      • On Windows, all graphic cards from NVIDIA, ATI, and INTEL are supported by RedSDK.
      • On Linux, 3D graphics hardware acceleration in RedSDK is supported on the following video chipsets:
        • NVIDIA cards. It is advised to use the latest recommended driver from NVIDIA.
        • ATI cards. It is advised to use the latest recommended driver from ATI/AMD.
      • 3D graphics hardware acceleration in RedSDK on Linux is NOT supported on:
        • INTEL cards. As opposed to ATI and NVIDIA, 3D hardware acceleration in Linux drivers for INTEL cards is relatively new. So far we do not yet officially support 3D hardware acceleration on INTEL cards, although we are working on it.
        • Laptops with dual graphics, although it happens to work on some dual graphics systems using recent versions of proprietary NVIDIA drivers.



      Just need 2D capabilities? Check out BricCAD Lite
