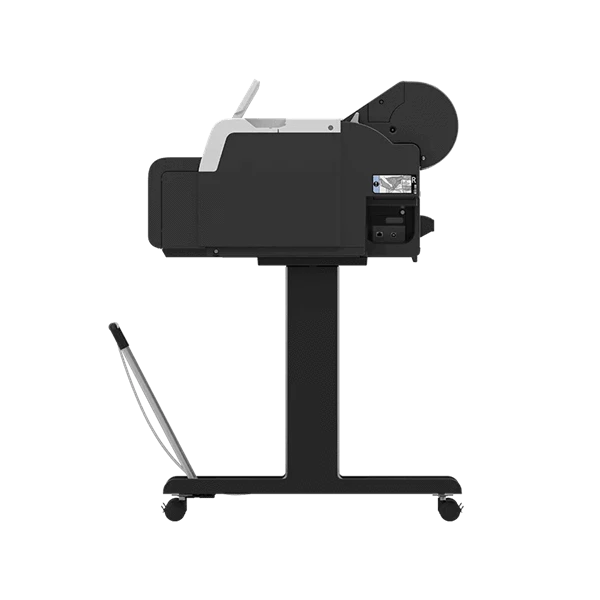

The Canon imagePROGRAF TM-340 sets a new benchmark in large-format printing. This printer is excellent for beginners who don't have much space. It makes high-quality prints, like posters and CAD documents, look fantastic. This tool is invaluable if you're new to large-format printing or need a small but powerful option.
High-Performance Ink and Calibration
The 5-Color LUCIA TD Pigment Ink system drives the performance of the TM-340. This ink system produces vibrant colors and high-quality prints. The printer can print about 2.7 pages in a minute. It also has advanced color calibration for vivid prints.
Intuitive Design for Optimal Efficiency
The TM-340 features a flat-top body design with a tilt touchscreen interface. This ergonomic design allows for full-frontal operation and easy access. The user can adjust the 4.3" user interface screen. It shows important information like ink levels and sub-ink tank levels. The printer can detect media by itself, making printing more straightforward and comfortable for the user.
Eco-Friendly and Sustainable
The imagePROGRAF TM 340 is EPEAT Gold Registered and ENERGY STAR certified. It promotes environmental responsibility. Canon is committed to using eco-friendly materials, switching from EPS to cardboard packaging.
Specifications
Printer Type: 5-Color 36-inch Printer
Number of Nozzles: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch: 1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to) 2400×1200dpi (Max)
OS Compatibility Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh OS X v10.10.5-v10.12x
Standard Interfaces: USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size Minimum 5 picoliter
Ink Capacity: 55 ml per color
Ink Droplet Size Pigment Ink
Color Set: Pigment Inks - Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram: 2 GB (Physical)
Media Width: Cut Sheet - 8"- 17"
Roll Feed - 8" - 36"
Media Thickness: 0.07-0.8mm
Maximum Media Roll Diameter 5.9" (150mm)
Borderless Printing Width: 8" - 36"
Paper Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Languages: SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx Operation: 42 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 5.8 Bels
Physical Dimensions: 42" x 51" x 35" (H x W x D)
Weight approx. 117 lbs (roll holder included, no inks, no print heads)
Power Source: AC 100-240V (50-60Hz)
Power Consumption: Maximum: 59W or less
Standby 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment: Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items:
- Print Head (PF-06)
- Maintenance Cartridge (MC-31)
- Ink Tanks (PFI-030)
- Cutter Blade (CT-08)
Software Included: TA Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor
