Portable Scanner - The Most Portable Way to Capture Documents, Photos & More! - TAVCO

The Colortrac SmartLF Scan is a compact, lightweight, and versatile document scanner that makes scanning large format documents easier than ever. It comes in either a 24-inch or 36-inch format and is a completely self-contained system.

[ Get a scanner quote ]            [ Shop now ]


Since it does not require a PC to function, the SmartLF Scan is the most versatile and complete portable wide format scanner you can get.

Why You Need a Portable Scanner

If you're looking for a portable scanner that's small enough to fit pack in your car or take on a plane, then check out the Colortrac Smart Lf Scan. This scanner is designed to make scanning documents as simple as possible. You only need standard electrical power. Just plug it in and go.

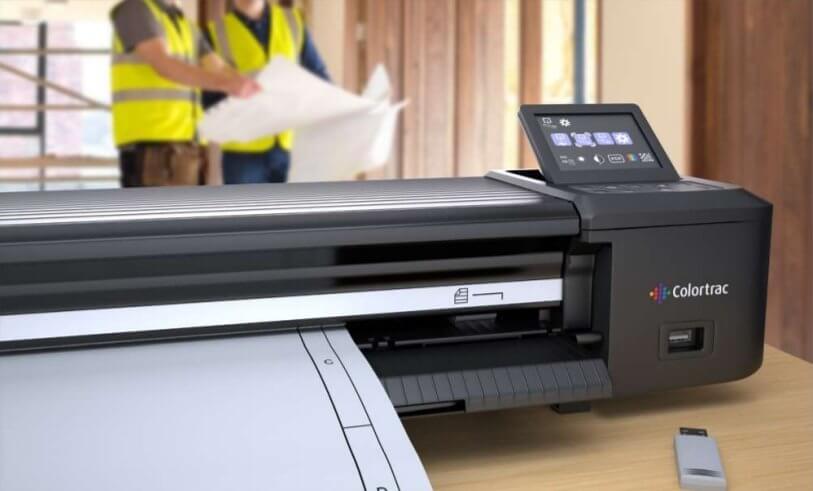

 Colortrac SmartLF portable scanner

How to Save Money Using a Portable Scanner

With a portable scanner, you can save money by scanning documents at home, or in the field, and then sending them electronically to clients or colleagues. This saves you the cost of printing and mailing costs. It also allows you to keep track of what you scanned so you can easily find any files later.

How to Use the Colortrac SmartLF Scan

To use the Colortrac Smart LF Scan, simply place the document onto the input tray and press the button. The scanner will automatically detect the type of paper and start scanning. You can also choose to manually set the resolution, image quality, and file type. Scanned files can either be saved within the internal scanner memory or onto a USB thumb drive.

Once you are back at the office, connect to the SmartLF Scan through Ethernet or Wi-Fi. So, you are not limited to connecting to a single computer. Your entire team and link to it through your corporate network.

Features of the Colortrac Smart LF Scan

With its slim profile, lightweight design, and convenient features, the Colortrac Smart LF Scan makes scanning drawings and other large documents quick and simple. This compact device lets you scan documents, photos, and more without having to carry bulky scanner stands or extra computers. Everything you need is onboard and can be packed in the included tough, wheeled, metal case.


In conclusion, a portable scanner is a great tool to use when traveling, whether it's for business or pleasure. When it comes to scanning CAD files, maps, and other wide-format documents, it is hard to beat the performance and the convenience of the Colortrac SmartLF scanner.

SmartLF Scan Series

  Scan 24 Scan 36
Imaging technology SingleSensor SingleSensor
Max scan width 24 inches (607mm) 36 inches (914mm)
Max media width 26 inches (660mm) 38 inches (956mm)

Scanning Speed

Scanning speed (full document width) 200 dpi monochrome 4.5 inches/sec
Scanning speed (full document width) 200 dpi color 3 inches/sec


Colortrac SmartLF Specifications

Maximum media thickness 0.02 inches (0.5mm)
Maximum optical resolution Automatic (DocLogic); Manual: 200, 300, 400, 600dpi
Colortrac key technologies SingleSensor
Document justification Center justified
Accuracy 0.2% +/-1 pixel
Data capture color depth 48-bit color, 16-bit monochrome
Color spaces sRGB
Maximum image length 200 inches at 200 dpi, 150 inches at 400 dpi, 109 inches at 600 dpi (Doc Logic reserves 300 dpi)
USB interface USB 2.0 - scanning to memory stick
Ethernet interface Gigabit - scanning to networked PC
Internal memory  6 GB or 8 scans
Bundled software NetApp (network scan connection utility)
File formats TIFF, JPEG, PDF
File compatibility AutoCAD (as raster), CAD, GIS, and other raster imaging editing applications
Operating systems Windows 11 64 bit, Windows 10 64-bit and 32-bit


AecCadGisLarge format scannersMaps
