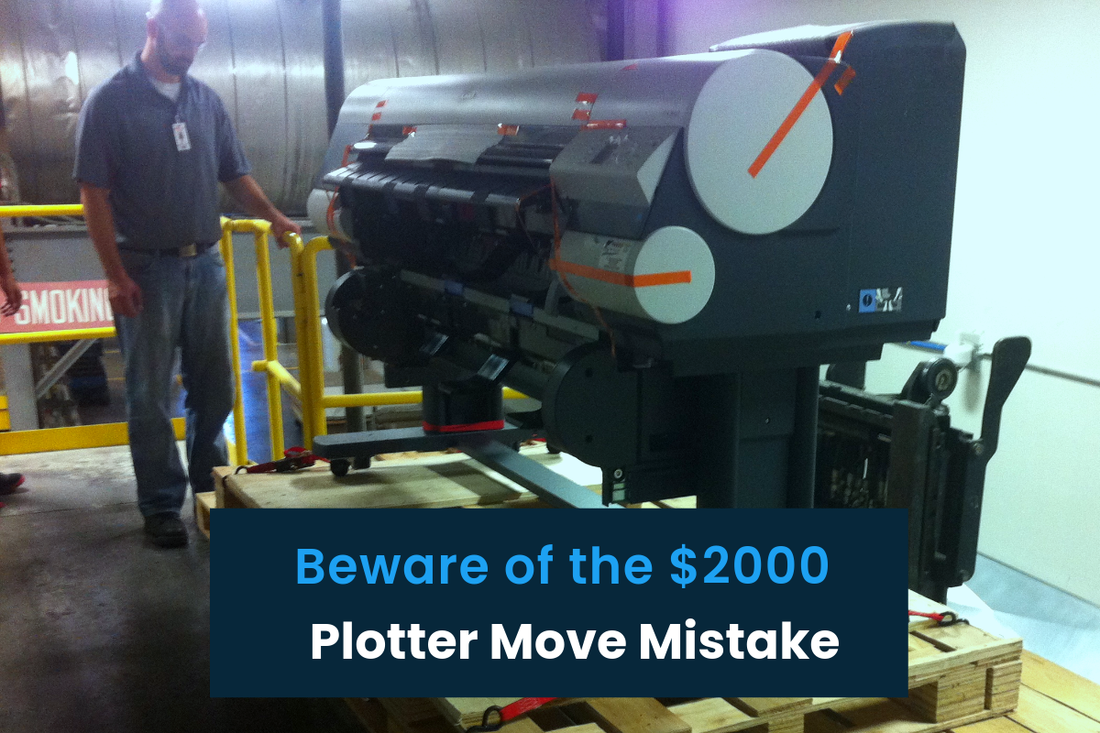

Avoid $2,000+ in Canon Printer Damage During Office Relocations

Kevin Vaughan

Sep 9, 2025

0 comments

Quick Relocation Summary

Risk Factor: Moving a Canon large-format printer incorrectly can waste $2,000+ in ink and damage print heads
Critical Angle: Printers tilted beyond 20 degrees require complete ink drainage
Time Investment: Proper preparation takes 2-3 hours but saves thousands in potential damage
Expert Requirement: To get the most out of your relocation, demand certified technician involvement

Last month, a Dallas architecture firm lost $2,200 in Canon printer ink during a seemingly simple office move. This mistake often happens to Texas AEC companies relocating their large-format equipment when stairs or a small elevator are involved.

While Canon's TX-3200 series powers Texas design offices, most firms discover too late that standard moving procedures can trigger catastrophic ink system failures.

TAVCO's certified technicians have relocated scores of Canon large-format printers across Houston, Austin, and DFW, using a specific protocol that determines whether stairs or elevators minimize material waste.

This guide reveals the exact pre-move procedures our technicians follow, based on 40 years of serving Texas AEC professionals and recent field experience at Baylor University's engineering department.

The Hidden Physics of Printer Relocation

Canon's sub-ink system maintains constant pressure across 12 internal lines (in Pro Models), holding up to half a bucket of ink—approximately $1,500 worth in a 44-inch model. When tilted beyond 20 degrees, gravity overwhelms the system's pressure locks, causing ink to flow backward through the purge unit.

The maintenance cassette, designed to capture excess ink during regular operation, becomes a leak point during moves. Even with proper drainage, residual ink in the purge unit will drip, necessitating the use of tarps and protective blankets during relocation.

Texas building codes often require 36-inch minimum elevator doors, barely accommodating Canon's larger 44-inch and 60-inch models. This forces an 80-90 degree tilt for elevator entry—triggering mandatory Level 3 drainage protocols that consume entire ink sets.

The Two-Path Decision Framework

Path 1: Stairway Transport (Preferred)

Maintains 20-degree maximum tilt, preserving ink system integrity. Remove the maintenance cassette only, lock the carriage with the purge unit, and accept minor dripping. Total material loss: Under $50. Requires 2-3 experienced movers with equipment dollies.

Path 2: Small Elevator Tip Up (Costly)

Requires Level 3 system drainage through menu settings. Ink flows through the print head into the maintenance cassette, consuming the complete ink set ($800-1,500), new maintenance cassettes ($100+ each), and potentially print head replacement ($483-726). Total cost: $2,000-3,000 minimum.

Critical Pre-Move Protocol

Step 1: Assessment (30 minutes)

Measure all doorways, elevators, and stairwell clearances
Calculate tilt angles required for navigation

Success Indicator: Documented path maintaining under 20-degree tilt

Step 2: Preparation (60-90 minutes)

For stairs: Remove maintenance cassette, secure carriage lock
For elevator: Initiate Level 3 drain with new maintenance cassette

Common Pitfall: Starting drainage without replacement supplies on hand

Step 3: Execution (60 minutes)

Position tarps and protective blankets along the entire path
Maintain consistent tilt angle throughout movement

Time Investment: 2-3 hours total with a certified technician

Baylor University Case Study (TAVCO Custom Fix)

Challenge: 44-inch Canon printer, 30-inch elevator door, third-floor installation

Solution: Manual ink line disconnection, partial drain, bypassing Level 3 drain

Result: Saved $1,000 in materials despite the complex 60-degree tilt requirement

Replication: Requires a certified technician with sub-tank access expertise

✅ Smart Move Strategy

Schedule reconnaissance visit, identify stair routes first, budget for certified technician assistance → Save $2,000+ in materials

❌ Costly Mistakes

Assume standard movers understand printer requirements, tilt without checking angle → Trigger automatic drainage, void warranty.

Critical Questions from Texas AEC Firms

Q: Can we stop Level 3 drainage once initiated?
A: No. Once triggered through the boot function or menu, the process is irreversible. The system will demand new print heads, maintenance cassettes, and complete ink sets before resuming operation.

Q: Does ink leakage damage internal components?
A: Leaked ink creates a mess but usually causes no permanent damage. However, this is not guaranteed, and liquids and electronics are never a good combo. The purge unit's primary function is to maintain a suction seal, preventing line dry-out during transport.

🔑 Key Takeaways

Level 3 drainage is irreversible: Accidental activation costs a minimum $2,000
Dot count impacts warranty: Drainage cycles consume print head life without producing revenue
Texas building constraints: Most smaller elevators require costly drainage procedures

We've demonstrated how proper Canon significant format printer relocation saves Texas AEC firms thousands in unnecessary consumables waste, potentially saving our customers $2,000+ in material replacement.

The 20-degree tilt threshold and stairway-first approach have protected many Canon installations across Houston, Austin, and Dallas offices.

Today: Measure your current printer location's exit routes and document clearances.

This Week: Contact TAVCO at 972-488-8080 for a free relocation assessment.

This Month: Execute your move with certified technician support, preserving warranty and avoiding the $2,000 drainage penalty that caught 40% of relocated Texas firms last year.
