Innovolt P2503 Intelligent Power Protector

InnovoltSKU: P2503-15-120
No reviews

Price:
Sale price$237.00
Stock:
In stock

Description

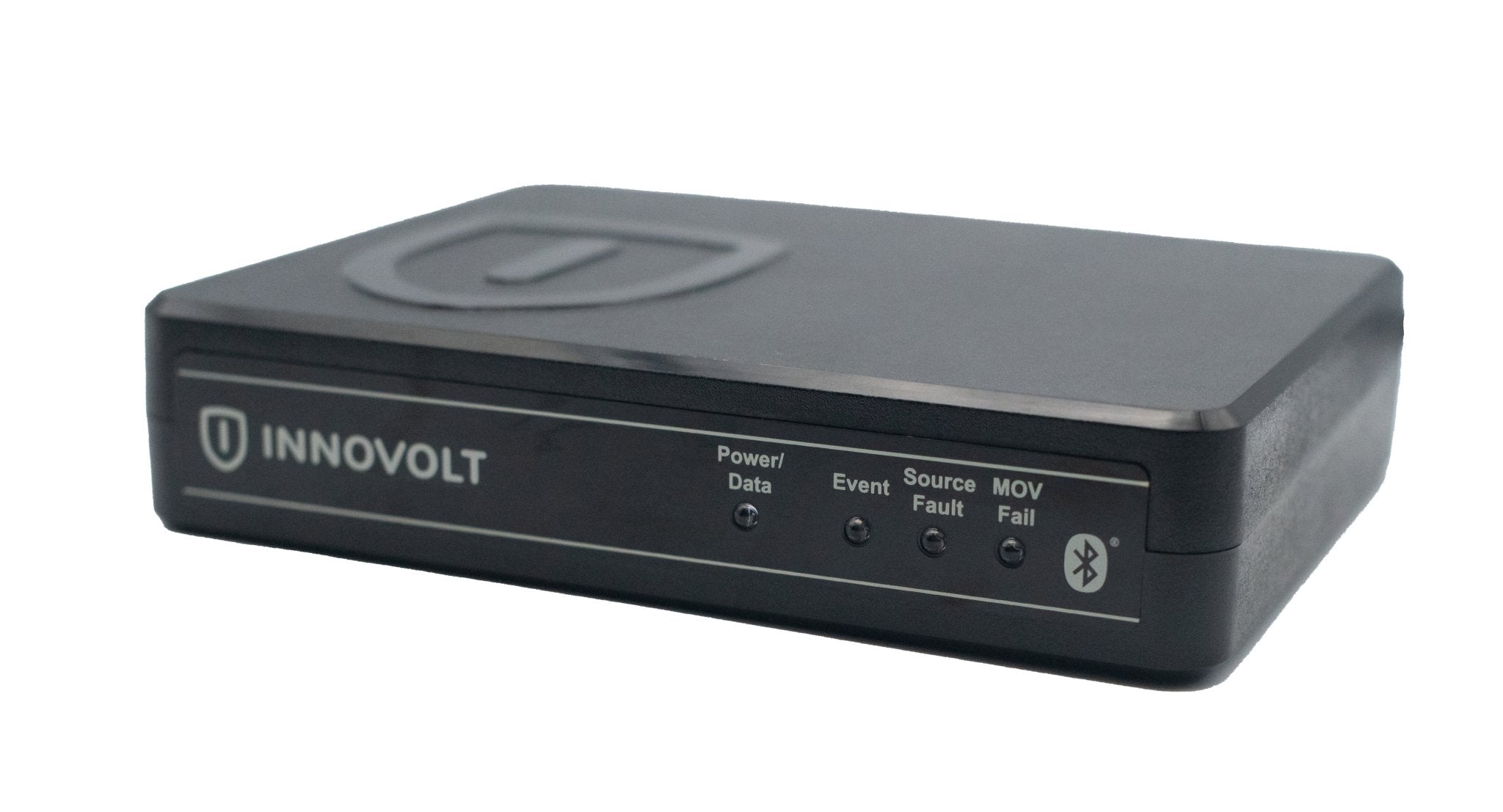

Innovolt P2503 Power Protector

Remotely manage power protection with the Innovolt P2503, the industry’s most effective solution for cloud-based control and fleet visibility. It safeguards equipment from power disturbances while providing real-time insights and control through Innovolt’s cloud-based management system.

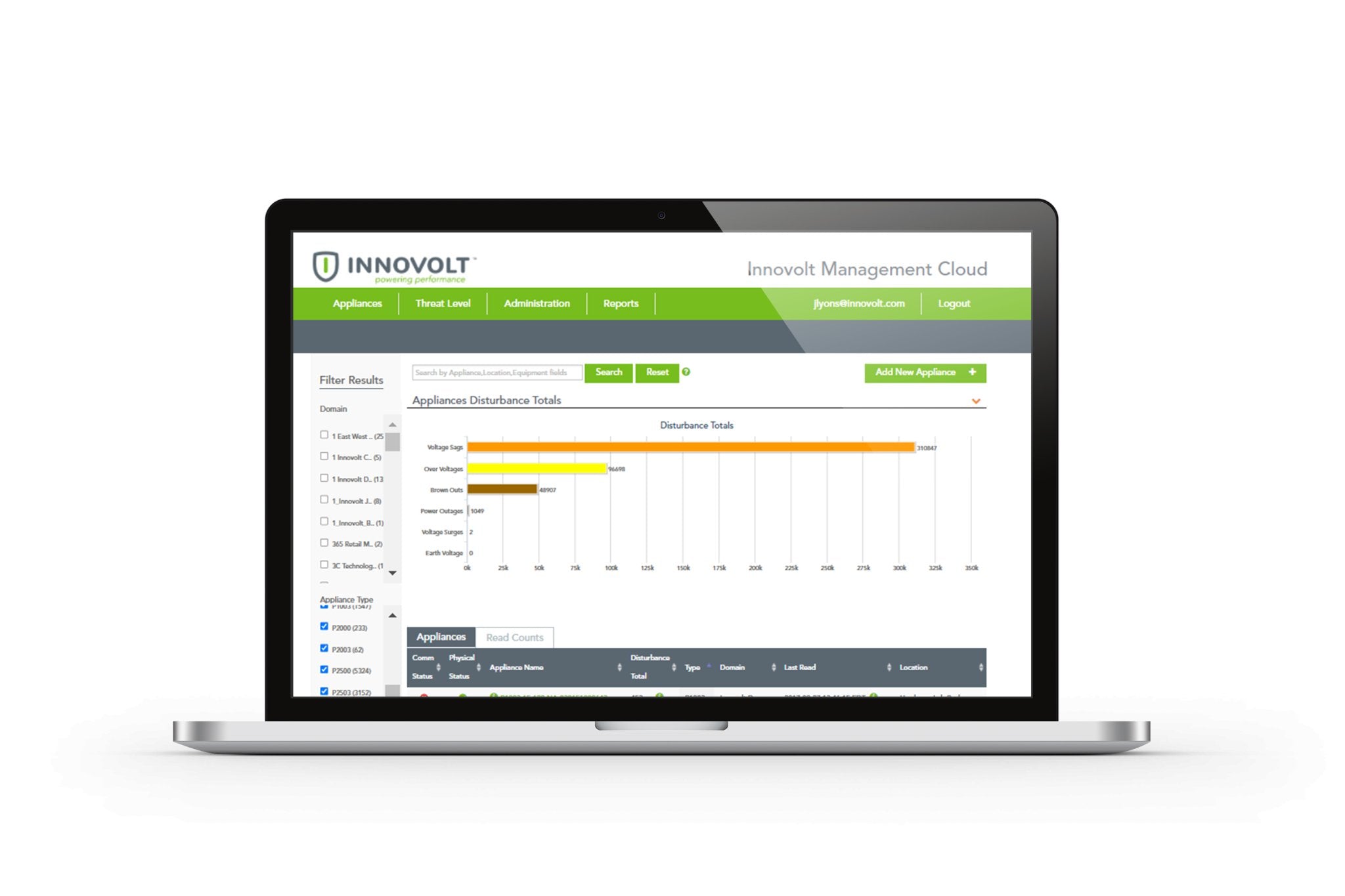

Featuring built-in Ethernet connectivity, the P2503 automatically reports power profile data to the Innovolt Management Cloud (IMC), enabling timely alerts and remote power cycling to resolve issues without technician dispatch. The P2503 provides valuable analytics to quickly diagnose problems, reduce downtime, and prevent future disruptions.

Key Benefits:

  • Cloud-based fleet management with real-time monitoring
  • Remote power cycling for faster issue resolution
  • Protection against all five significant power disturbances
  • Reduced service calls and increased equipment lifespan
  • Enhanced productivity and customer experience



Choose Innovolt P2503 for superior protection and control over your critical electronic devices, ensuring uptime and reducing service disruptions.

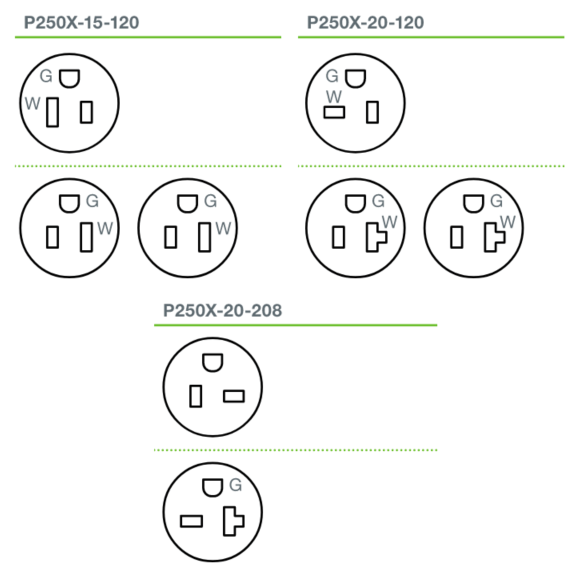

 Parameter P250X-15-120 P250X-20-120 P250X-20-208
Normal operating voltage 120V, 60 Hz 120V, 60 Hz 120V, 60 Hz
Overvoltage limit >145 VAC >145 VAC >145 VAC
Undervoltage limit <88 VAC <88 VAC <88 VAC
Max. continuous current 15 A 15 A 15 A
Voltage surge per UL 1449

500 VAC L-N

500 VAC L-G

500 VAC N-G

500 VAC L-N

500 VAC L-G

500 VAC N-G

500 VAC L-N

500 VAC L-G

500 VAC N-G

Connector

RJ11, RJ45

RJ11, RJ45

RJ11, RJ45

Clamping voltage

TEL: 180 V

DATA: 8.5 V

TEL: 180 V

DATA: 8.5 V

TEL: 180 V

DATA: 8.5 V

Protected lines

TEL: 3-4

DATA: 1-2, 3-6, 4-5, 7-8

TEL: 3-4

DATA: 1-2, 3-6, 4-5, 7-8

TEL: 3-4

DATA: 1-2, 3-6, 4-5, 7-8
