Description

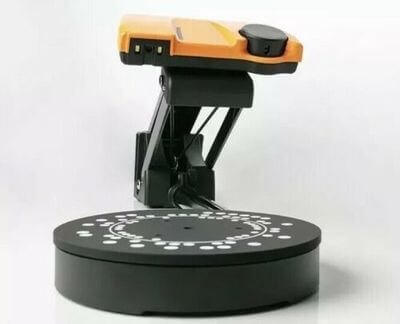

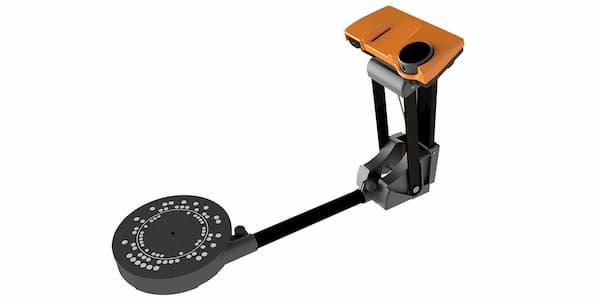

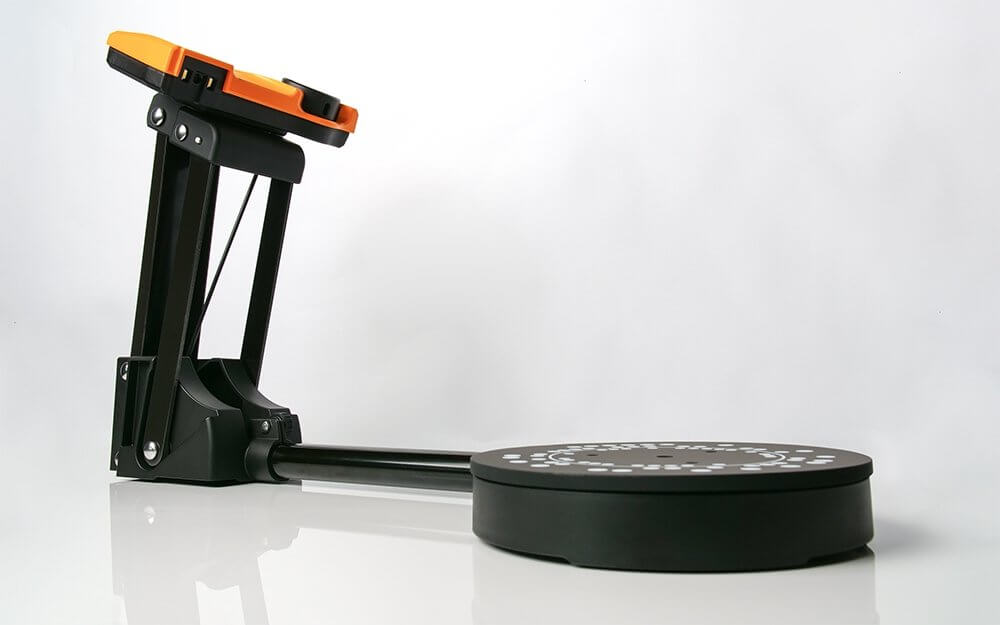

Quickly and easily scan your small to mid-size objects in a snap with the SOL 3D Scanner.
It's the only desktop 3D scanner that empowers one-touch simplicity, intuitive software, and consistently delivers impressive scanned images.
Create digital copies of real world objects. The SOL 3D is small and lightweight with an integrated turntable to automate the scanning process. Included intuitive software prompts users through the whole scanning process, so anyone can use it.
Who is the SOL 3D Scanner for?
Makers
Engineers - crafters - designers - inventors
Makers of all types can use the SOL scanner in their creative efforts, but the the most common uses are to recreate an object in a new size or material or use a scan of an existing object to “tweak” it or as a reference item for a new 3D model.
Hobbyists
Collectors - artists - creators
Share and manage your collections/creations to make a 3D directory for your web site/blog or to share with other passionate collectors. The SOL 3D scanner enables hobbyists to reproduce creations without jeopardizing the original piece.
Educators
Technical schools - STEM/STEAM - science labs - research
The SOL 3D scanner allow students to get experience with the world of 3D. Transform tangible, real-world objects in digital files with a few clicks. The SOL scanner makes it simple for students to generate high-resolution scans for artistic creation, invention, prototyping and more.
Entrepreneurs
Designers - businesses - start-ups
3D scans on the SOL scanner are perfect for product funding pitches. Show your product and inventions to the world for co-partners, prototyping, processing, pre-manufacturing, funding.
SOL 3D Scanner Technology
It uses a combination of laser triangulation and white light technology. This hybrid approach provides a maximum resolution of 0.1 mm. You can also choose between near and far scanning modes. The SOL features an automatic turntable, making the 3D scanning process automated. The rotating table is able to support a maximum weight of 2 kg.
| System Requirements | |
| Supported operating systems | Windodws 10, 64-bit/MacOS |
| Graphics card | Minimum 2 GB memory, must support OPENGL 3.3 or higher |
| Recommended hardware | 2.8 GHz processor, 4 cores (8 logical processors), 16 GB RAM, 100 GB HDD |
| Minimum hardware | 2 GHz processor, 2 cores (4 logical processors), 8 GB RAM, 100 GB HDD |
| Power input | Max 800 mA (USB 3.0) |
| Internet | Required |
| SOL 3D Scanner | |
| Max size of object | 3.9 inches x 3.9 inches / 100 x 100 mm (6.7 inches x 6.7 inches / 170 x 170 mm in oversize mode) |
| Min size of object | 1 x 1 inch / 25 x 25 mm |
| Max weight of object | 4.4 lbs / 2kg |
| Working range | 210 - 360 mm |
| Max resolution | 0.1 mm (0.004 inches) |
| Camera resolution | 5 MP optical compensated |
| Calibration | Automatic |
| 360° scan from start-to-finish | Normal mode: 20 minutes / Turbo mode: 10 minutes |
| Export file types | OBJ, STL, PLY, DAE, XYZ |
| Data transfer | USB |
| Texture / colors | Yes |
| Appending / adding scans | Yes |
| Software updates | Yes (requires registration of scanner) |
Part number: 7300A001001
