Description

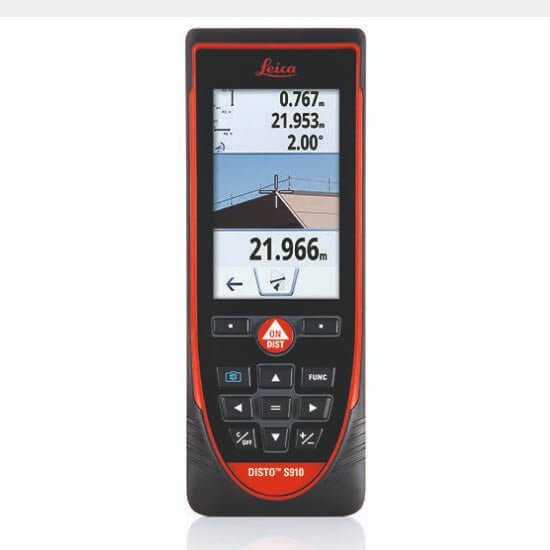

The DISTO S910 features the best of LDM technology from Leica Geosystems. It is the perfect tool for both indoor and outdoor measurements.
The S910 can easily take long-range measurements and can measure inaccessible spaces using multiple points from one location. It has a Smart Base for even more measuring options and functions.
It can also export data to CAD applications. And it has WLAN, Bluetooth, and USB connectivity. Simply put, the S910 is the Master DISTO.
Onboard point-to-point measurement from a single location.
When you use the S910, you won’t need a ladder because the S910 has Point-to-Point (P2P) measurement technology built in. The S910 will compute the distance between two points, regardless of height or angle. You can also take multiple P2P measurements to measure complex planes, such as roofs.
Disto S910 Packages

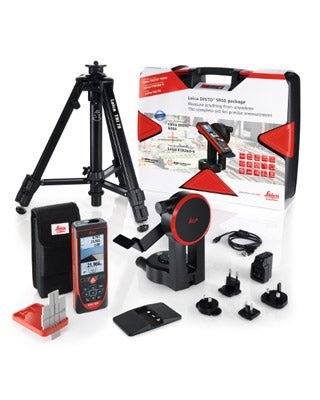

S910 P2P Pack (Point-to-Point)
- Basic S910 device package
- Tripod TRI 120
- Accessories in rugged case
- Leica FTA 360-S
- GZM3 target plate
TRI 2000 Pro Pack
- Same as P2P (excluding hard case)
S910 Device-only Package
- Leica DISTO S910
- Carrying pouch
- Hand loop
- Smart Base extension
- USB charger with USB cable and 4x country adapter
- Quickstart guide
- Warranty card, Safety Manual, Calibration Certificate Silver
Intelligent endpiece? How about a Smart Base instead?
The S910’s integrated Smart Base is key to Point-to-Point (P2P) Technology. It enables distance measurements to be taken between any two points from just one location. The combination of P2P Technology and an integrated tilt sensor opens completely new measurement possibilities.
Smart Area Measurement.
The S910’s Smart Area Measurement capability couldn’t be easier to use. Simply measure the outline of an area—clockwise or counterclockwise—and immediately see the result on the display, no matter how complex the shape of an area is.
Ready for CAD.
The S910 is packed with technology to help you get the most out of your measurements. With Bluetooth, WLAN, and USB connectivity, you can export your measurements as .DXF files straight into CAD, on-site, and you can export your .JPG image files with measurement data as well.
FTA 360-S tripod adapter for greater range and accuracy.
The FTA 360-S tripod adapter is like our DST 360 but is designed specifically for the S910. It is used to aim the S910 when taking point-to-point or long-distance measurements.
| Typ. distance measuring accuracy | ± 1.0 mm |
| Range | 0.5 up to 300m |
| Measuring units | m, ft, in |
| X-Range Power Technology |
yes |
|
Distance in m Ø of the laser dot in mm |
10, 50, 100 m 6, 30, 60 mm |
| Tilt sensor | yes |
| Tilt sensor accuracy to the laser beam | -0.1°/+ 0.2° |
| Tilt sensor accuracy to the housing | ± 0.1° |
| Units in the tilt sensor | 0.0°, 0.00 % mm/m, in/ft |
|
Smart Base measuring range Horizontal Vertical |
360° −40° to 80° |
| Distance in m Typ. tolerance of the P2P function |
2, 5, 10 m ± 2, 5, 10 mm |
| Levelling range | ± 5° |
| Pointfinder with zoom | 4 × |
| Additional overview camera | yes |
| Picture file format | .jpg |
| Memory for pictures | 80 |
| CAD data format on device | .dxf |
| Memory for CAD files on device | 20 files x 30 points |
| Memory for last measurements | 50 |
| Display illumination | yes |
| Free software for Windows | yes |
| Free App for iOS and Android | yes |
| General data interface | Bluetooth® Smart |
| Data interface for 3D point data | WLAN |
| Measurements per set of batteries | up to 4,000* |
| Service life of batteries | up to 8 h* |
| Multifunctional endpiece | pin |
| Tripod thread | 1/4" |
| Batteries | Li-Ion rechargeable |
| Charging time | 4 h |
| Protection class | IP54 |
| Dimensions | 164 x 61 x 32 mm |
| Weight with batteries | 290 g |
Part number: 808183
