Leica BLK360 3D Laser Scanner Bundles

Click here to request a quote for a custom BLK3D bundle

Simple to use

The smallest and lightest imaging laser scanner of its kind

Fast - capture a scan in less than three minutes

Listed Leica BLK360 3D Scanner & Software Bundle Configurations:

6016036 – BLK360 System Package (No bundled Software)

• 1x BLK360 Laser Scanner (840440)
• 1x BLK360 Transport Hood (850555)
• 1x GEB212 Lithium-Ion Battery (772806)
• 1x GKL312 Battery Charger (852413)
• 1x GEV192-9 AC/DC Power Adapter (851476)
• 1x Car-Adapter for GKL (738242)
• 1x BLK360 Quick Guide (852401)
• 1x Leica BLK USB Documentation Card (854230)
• 1x ADSK Recap360 App Info Sheet (852403)
• 1x Information for Customer, all languages (721830)
• 1x BLK360 packaging (853683)

6013533 – Leica BLK360 & Register 360 Permanent Starter Package

• 1x BKL360 System Package
• 1x Permanent license of Cyclone REGISTER 360 with 1-year CCP Blue (Customer Care Pack)
  • Customer support, software updates and maintenance, and periodic professional hardware preventative maintenance and calibration

6012763 – Leica BLK360 & REGISTER 360 Subscription Starter Package

• 1x BKL360 System Package
• 1-year subscription to Cyclone REGISTER 360 software

6012765 - Leica BLK360, REGISTER 360 and TruView Cloud 500 Subscription

• 1x BLK360 System Package
• 1-year subscription to Cyclone REGISTER 360 software
• 1-year subscription to TruView Cloud with 500 setup positions

6012764 - Leica BLK360, REGISTER 360 Permanent Pro Package

• 1x BLK360 System Package
• 1x Permanent license of Cyclone REGISTER 360 with 1-year CCP Blue (Customer Care Pack)
  • Customer support, software updates and maintenance, and periodic professional hardware preventative maintenance and calibration
• Active CCP (Customer Care Pack) for Cyclone REGISTER – allows users to actively use one (1) seats of Cyclone REGISTER 360 (non-concurrently)

6012766 – Leica BLK360 CAD Elite Subscription Package

• 1x BLK360 System Package
• 1-year subscription to Cyclone REGISTER 360 software
• 1-year subscription to CloudWorx Ultimate
• 1-year subscription to JetStream Enterprise
• 1-year subscription to one (1) Jetstream Connector
• 1-year subscription to Cyclone JetStream PUBLISHER

The Leica BLK360 captures the world around you with full-color panoramic images overlaid on a high-accuracy point cloud.

It is simple to use with the single push of one button.

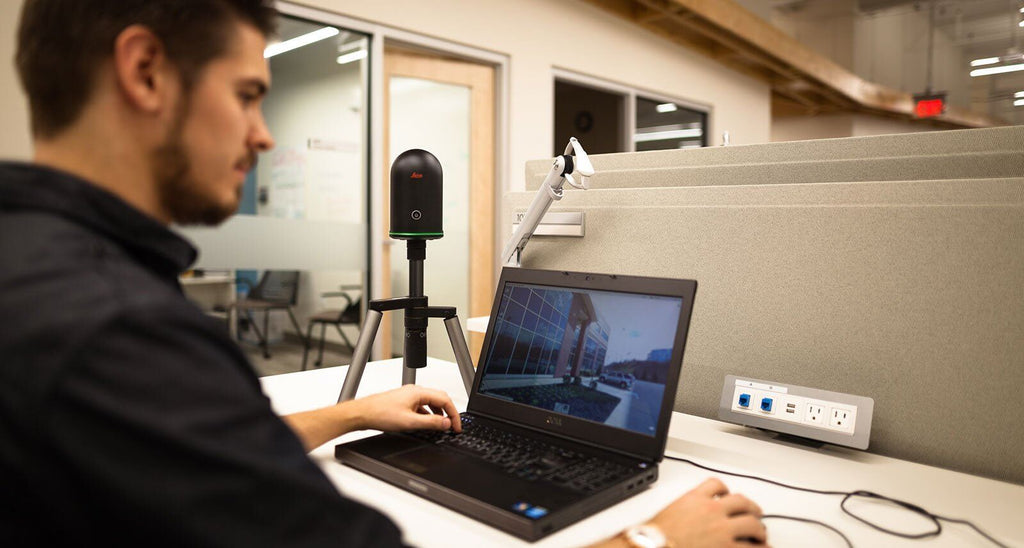

The BLK360 conveniently streams image and point cloud data to an iPad or final project data to Cyclone REGISTER 360 via Wi-Fi.

With automated workflows, the BLK360 plus the software solution of your choice dramatically streamlines the reality capture process, thereby opening this technology to non-surveying individuals.

Simple export of LGS or RCP files makes working with point cloud data downstream in the Leica Geosystems and Autodesk suites simple and efficient.

Spend less time processing data and more time creating meaningful deliverables.

• Range up to 197 feet
• Accuracy 4mm at 10m / 7mm at 20m
• Horizontal field of view: 360°
• Vertical field of view: 300°
• 360,000 laser scan points per second
• Bluetooth wireless data transfer
• Three HDR cameras
• Scans in under 2 minutes

Speed

On-the-fly image and point cloud processing in the field and auto-registration office workflows with Cyclone REGISTER 360.

Ease-of-Use

Push-button scanning automatically stitches and registers captured scan data for in-field visualization in the mobile version of Cyclone FIELD 360 and ReCap Pro. Then transfer the data seamlessly to Cyclone REGISTER 360 via Wi-Fi for final processing.

Simplified Data Collection

Two-in-one 360º image documentation and laser scan data.

Portability

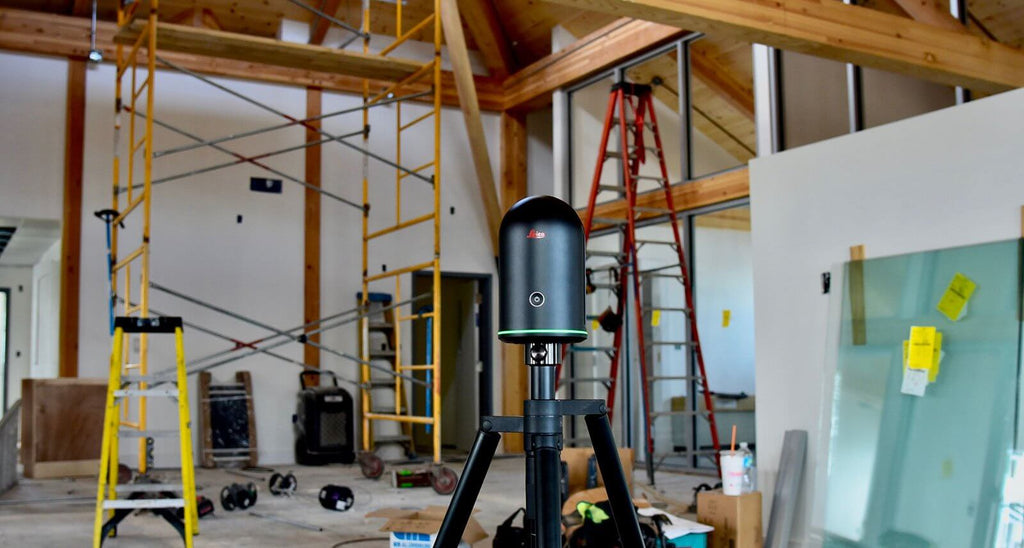

Flexibility to scan wherever, whenever with the small, lightweight imaging laser scanner that fits into a messenger bag.

Cloud Connectivity

Better collaboration and virtualization with cloud sync.

Interoperability

Fully compatible with the Lecia Geosystems High-Definition Surveying (HDS) software suite and Autodesk’s design solutions.

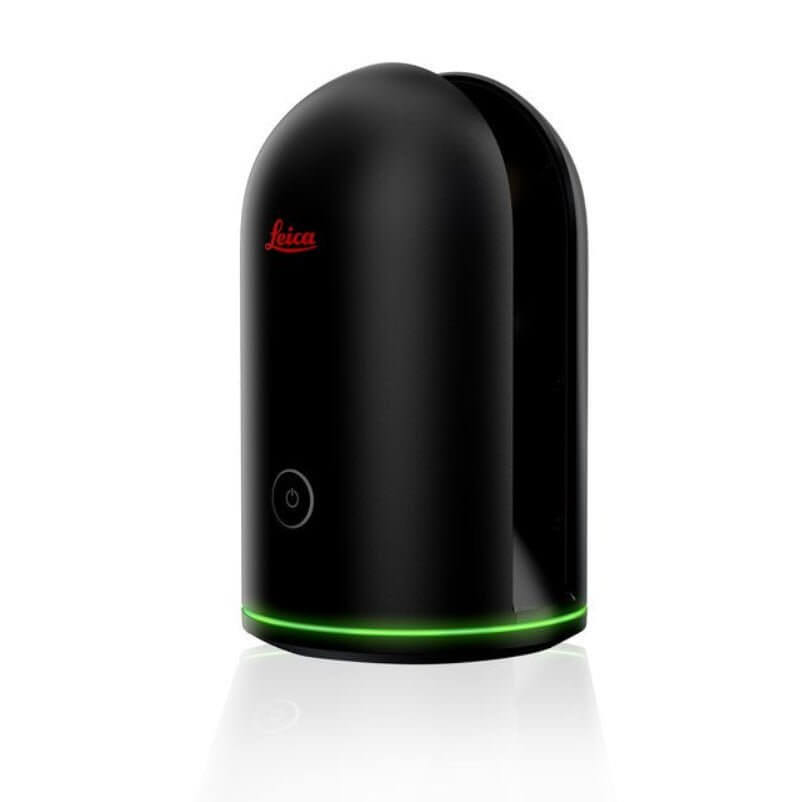

BLK360 imaging laser scanner

Allows you to scan in high, standard and fast resolutions

Weighs 1 kg / Size 165 mm tall x 100 mm diameter

Less than 3 minutes for the full-dome scan (in standard resolution) and 150 MP spherical image generation

360,000 laser scan setpoints per second

High-Dynamic Range (HDR) and thermal imaging

Software offerings to meet your needs

Bundled with Lecia Geosystems’ next generation of registration software, Cyclone REGISTER 360, for users who want to take on mid-to-large scale projects

All BLK360 imaging laser scanners come packaged with one year of ReCap Pro for desktop, web, and mobile

BLK360 PRODUCT SPECIFICATIONS

All specifications are subject to change without notice.

All accuracy specifications are one sigma unless otherwise noted.

* at 78% albedo

GENERAL

Imaging scanner 3D scanner with an integrated spherical imaging system and thermography

panorama sensor system

DESIGN & PHYSICAL

Housing Black anodized aluminum

Dimensions Height: 165 mm / Diameter: 100 mm

Weight 1kg

Transport cover Hood with integrated forstand

Mounting mechanism Button-press quick release

OPERATION

Stand-alone operation One-button operation

Remote operation iPad app, Apple iPad Pro® 12.9”/iOS 10 or later

Wireless communication Integrated wireless LAN (802.11 b/g/n)

Internal memory Storage for > 100 setups

Instrument orientation Upright and upside down

POWER

Battery type Internal, rechargeable Li-Ion battery (Leica GEB212)

Capacity Typically >40 setups

SCANNING

Distance measurement system High-speed time of fight enhanced by Waveform Digitizing (WFD) technology

Laser class 1 (per IEC 60825-1:2014)

Wavelength 830 nm

Field of view 360° (horizontal) / 300° (vertical)

Range* min. 0.6 - up to 60 m

Point measurement rate up to 360’000 pts / sec

Ranging accuracy* 4mm @ 10m / 7mm @ 20m

Measurement modes 3 user selectable resolution settings

IMAGING

Camera System 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED flash Calibrated

spherical image, 360° x 300°

Thermal Camera FLIR technology based longwave infrared camera

Thermal panoramic image, 360° x 70°

PERFORMANCE

Measurement speed < 3 min for complete fulldome scan, spherical image & thermal image

3D point accuracy* 6mm @ 10m / 8mm @ 20m

ENVIRONMENTAL

Robustness Designed for indoor and outdoor use

Operating temperature +5 to +40° C

Dust/Humidity Solid particle/liquid ingress protection IP54 (IEC 60529)

DATA ACQUISITION

Live image and scanned data streaming

Live data viewing and editing

Automatic tilt measurements

Copyright Leica Geosystems AG, Heerbrugg, Switzerland 2017.
